Product Description

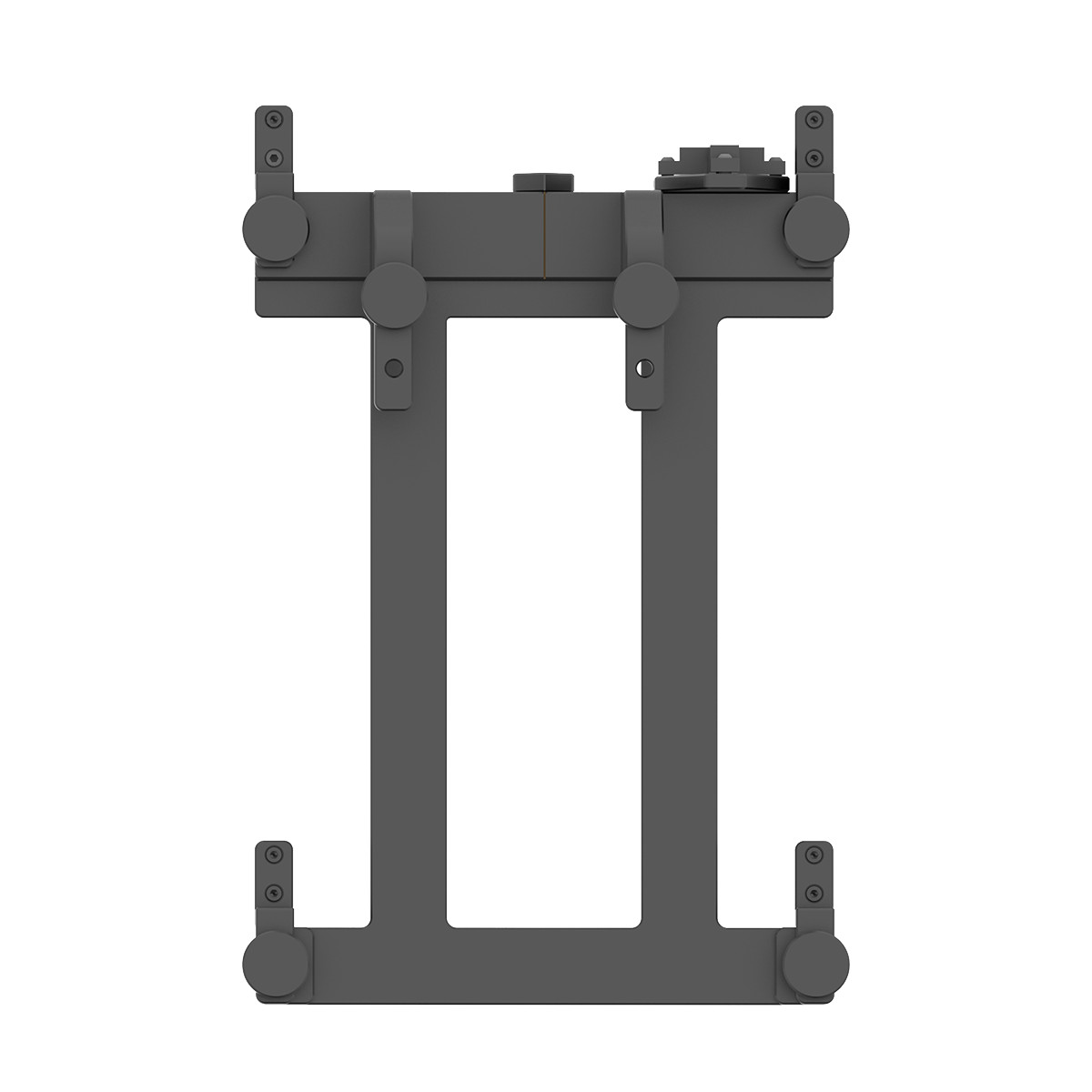

Autel ADAS CV Pattern Bracket CSC050A-02 — Required Bracket for CV LDW Pattern on MA600 Frame
The CSC050A-02 is a required mounting bracket for attaching the Autel CV ADAS Pattern (CSC0611-06) to the MaxiSYS MA600 portable ADAS calibration frame. If you are expanding your MA600 system to include CV (commercial vehicle) lane departure warning calibration capability and need to use the CSC0611-06 CV LDW pattern, this bracket is the hardware that makes it physically possible to mount that pattern on the MA600 frame.
What This Bracket Does
The MA600 frame has a specific crossbar and mounting interface. The standard LDW patterns that ship with MA600 packages attach using the default hardware. The larger CV pattern (CSC0611-06) requires this dedicated bracket to attach correctly. Without CSC050A-02, the CV LDW pattern cannot be used on the MA600 frame.
- Required bracket for mounting the CV LDW pattern (CSC0611-06) to the MA600 frame
- Designed specifically for the Autel MaxiSYS MA600 portable ADAS calibration frame
- Enables commercial vehicle lane departure warning calibrations on the MA600 system
- One-year limited warranty
Ordering Note
This bracket (CSC050A-02) and the CV LDW pattern (CSC0611-06, listed at $1,000) are two separate line items. You need both to perform CV LDW calibrations on the MA600 frame. The bracket alone does not include the pattern.
System Compatibility
- Autel MaxiSYS MA600 portable ADAS calibration frame
- Used in conjunction with Autel ADAS CV Pattern CSC0611-06
