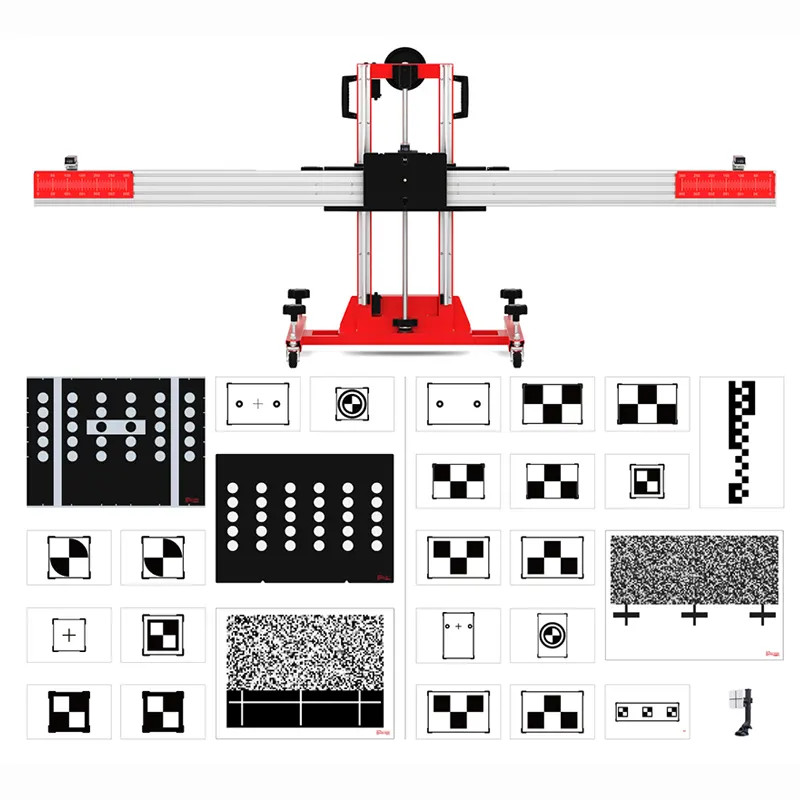

Autel ADAS LDW 2.0 — Lane Departure Warning Calibration Package (Frame Only, No Tablet)
The Autel ADAS LDW 2.0 (part number MA60020) is a portable Lane Departure Warning camera calibration package built on the Autel MA600 mobile calibration frame. This configuration includes the MA600 frame, LDW calibration targets and patterns, and the ADAS software upgrade license — but does not include a tablet. You provide your own compatible MaxiSYS tablet.
If you already own an Autel MaxiSYS tablet and want to add ADAS LDW calibration capability without paying for a second tablet, the LDW 2.0 is the right configuration. The included ADAS software upgrade activates on your existing tablet.
Vehicle Coverage
The LDW 2.0 package includes calibration targets and patterns for the following manufacturers:
- Alfa Romeo
- Honda
- Volkswagen
- Mercedes-Benz
- Hyundai / Kia
- Nissan / Infiniti
- Mazda
- Mitsubishi
- Subaru
- Toyota / Lexus (includes Toyota LDA target)
This package covers Lane Departure Warning camera calibration only. BSM, ACC, AVM, and Night Vision calibration require additional expansion packs sold separately.
What Is Included
- Autel MA600 Mobile Calibration Frame (collapsible aluminum, with travel case)
- LDW calibration targets and patterns for all listed manufacturers
- Toyota LDA target
- ADAS Software Upgrade license (compatible with MaxiSYS tablet — tablet not included)
- 2-line centering laser and 5-line alignment laser
- Laser-assisted reflectors
- One-year limited warranty
Compatible Tablets
The ADAS software upgrade included with this package is compatible with the following Autel MaxiSYS tablets:
- MS906BT
- MS906TS
- MS908, MS908P, MS908S, MS908SP
- MSELITE
- MSADAS
- MS909 series
Important: All tablet models except the MSADAS require the one-time ADAS software upgrade purchase (included in this package). Tablets that already have an active ADAS software license from a previous installation are NOT compatible with the MA600 system. Call us before ordering if you have an existing ADAS-enabled tablet to verify compatibility.
The MA600 Frame
The MA600 is a collapsible aluminum calibration frame designed for portability. It folds down for transport and storage, includes a travel case, and sets up in the bay using a guided on-screen procedure. The 5-line alignment laser provides precise vehicle centering and squaring to the calibration target.
- Crossbar length: 2,510mm (98.82 in)
- Pattern board height range: 1,000-1,600mm (39.4-62.9 in)
- Crossbar height range: 350-950mm (13.8-37.4 in) from floor
- Total net weight: 100.8 lbs (base 53.6 lbs + column/crossbar 47.2 lbs)
- Assembled dimensions: 2,510mm W x 714mm D x 1,480-2,105mm H
- Laser class: Class 2
- Certifications: CE, FCC, RoHS
Minimum Space Requirements
LDW camera calibration requires a minimum 10-foot alignment bay with the vehicle centered in front of the frame. The on-screen guided procedure walks through vehicle positioning relative to the frame.
Expandability
The MA600 platform supports optional expansion packs for BSM, ACC, AVM, and Night Vision calibration. Starting with LDW 2.0 and adding expansion packs as demand grows is a practical entry point for shops adding ADAS calibration services.
LDW 2.0 vs. LDW 2.0T
- MA60020 / LDW 2.0 (~$9,585) — Frame + targets + ADAS software. Bring your own compatible MaxiSYS tablet.
- MA60020T / LDW 2.0T (~$11,585) — Same package plus the MaxiSYS MS909 S2 tablet and VCI.
The no-tablet configuration is the right choice if you already have a compatible MaxiSYS tablet in the shop. The tablet-included configuration makes sense if you are starting from scratch or if you want a dedicated tablet for the ADAS station.
