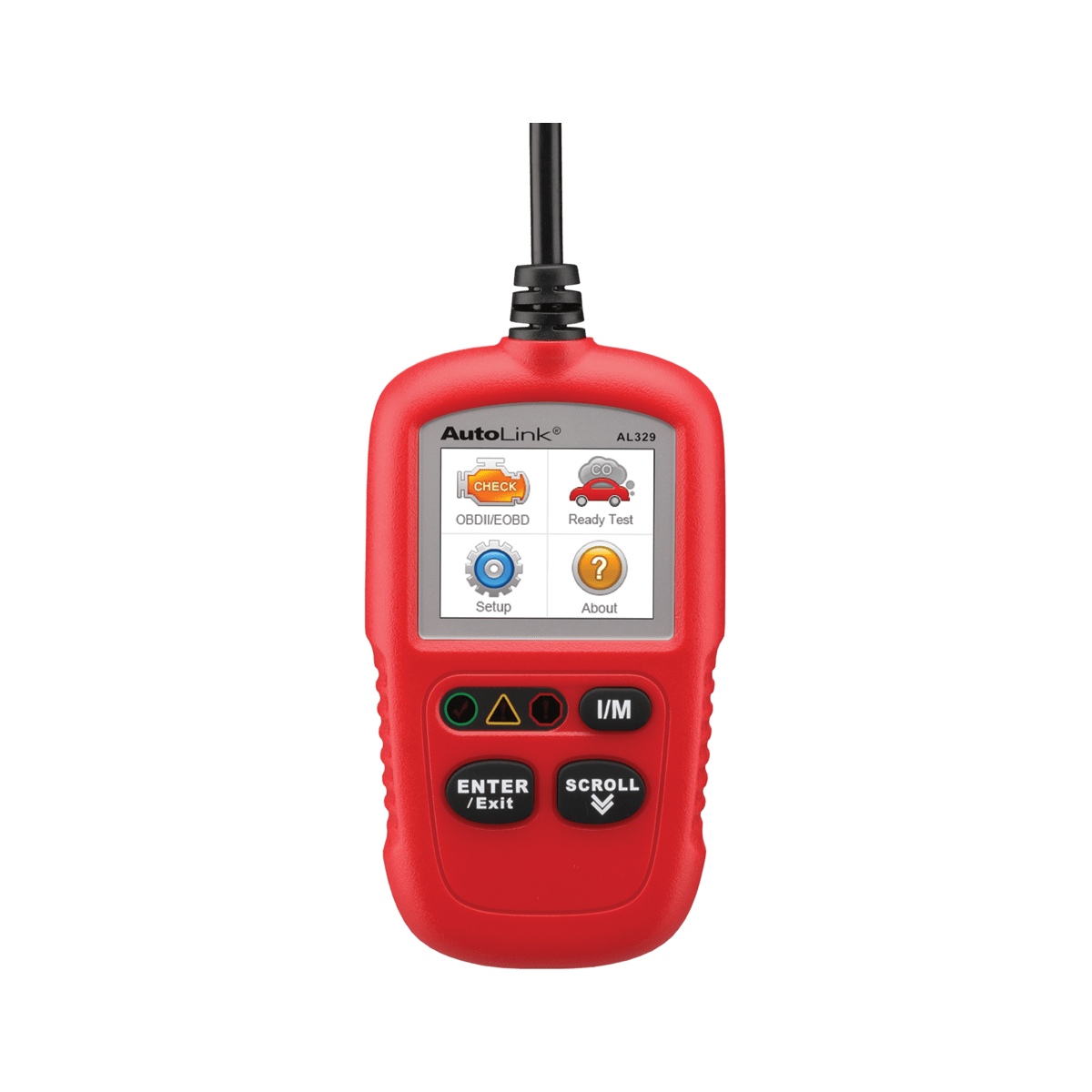

Autel AutoLINK AL329 — OBDII Engine Code Reader
The Autel AutoLINK AL329 is a compact OBDII engine code reader designed for DIY vehicle owners and entry-level shop use. It handles the basics well: read and clear engine trouble codes, check I/M emissions readiness status, and display live and freeze frame data — all through the vehicle's 16-pin OBDII port. It works on domestic, Asian, and European vehicles from 1996 forward.
If a customer wants to know why their check engine light is on without paying shop diagnostic rates, the AL329 is the tool for that job. It reads engine codes only, not transmission or body systems — but it does that job cleanly with a color display and straightforward button navigation.
What the AL329 Does
- Read and clear engine DTCs — current, pending, and permanent codes
- One-Touch I/M Readiness check — single button checks whether vehicle will pass state emissions testing; LED indicator gives instant pass/fail indication
- Freeze Frame data — captures sensor values at the moment a fault code was set
- Live data stream — view real-time OBDII PIDs while the vehicle is running
- AutoVIN — automatically reads VIN on 2006+ vehicles and displays vehicle-manufacturer specific codes when found
- Retrieves VIN, CALID, and CVN — vehicle identification, calibration ID, and calibration verification number
- MIL (Malfunction Indicator Lamp) status reading
Vehicle Coverage
- All OBDII-compliant domestic, Asian, and European vehicles
- 1996 and newer
- AutoVIN automatic vehicle detection on 2006 and newer vehicles
What It Does NOT Cover
The AL329 reads engine system codes only. It does not read transmission, ABS, airbag, or body control module codes. For full system coverage, step up to Autel's scanner tablet lineup (MS909 S2 and above). The AL329 also does not support Mode 6 enhanced OBD monitoring — the AL539 covers that if needed.
How the AL329 Compares in the AutoLINK Line
- AL329 (this tool) — engine codes, I/M readiness, live/freeze frame, AutoVIN, color display, lifetime free software updates via PC
- AL529 — OBD protocol compatible only, no AutoVIN, no software updates, no I/M readiness LED, no live data — stripped-down option
- AL539 — adds electrical testing (voltage, continuity, charging/starting circuits), 16GB memory card, all 10 OBDII test modes, enhanced Mode 6, component testing — for users who need more than just code reading
Display and Physical Specs
- Display: TFT color display, 220x176 DPI
- Dimensions: 120.9 mm x 68.4 mm x 18 mm (4.76 x 2.69 x 0.71 in)
- Weight: 155.2 g (0.342 lb)
- Power: 8.0 to 18.0V via vehicle battery (no batteries needed)
- Connection: OBDII cable (included)
- Software updates: Free for the lifetime of the tool via USB to PC
- Language: Tri-lingual
- Operating Temp: 0 to 60°C (32 to 140°F)
- Storage Temp: -20 to 70°C (-4 to 158°F)
What's in the Box
- AutoLINK AL329 code reader
- OBDII cable
Free Support and Updates
The AL329 includes lifetime free software updates (for the life of the tool) via USB connection to a PC, and Autel provides free technical support. Updates are downloaded through Autel's PC-based update application.
