Autel AutoLINK AL529HD Heavy Duty

Product Description

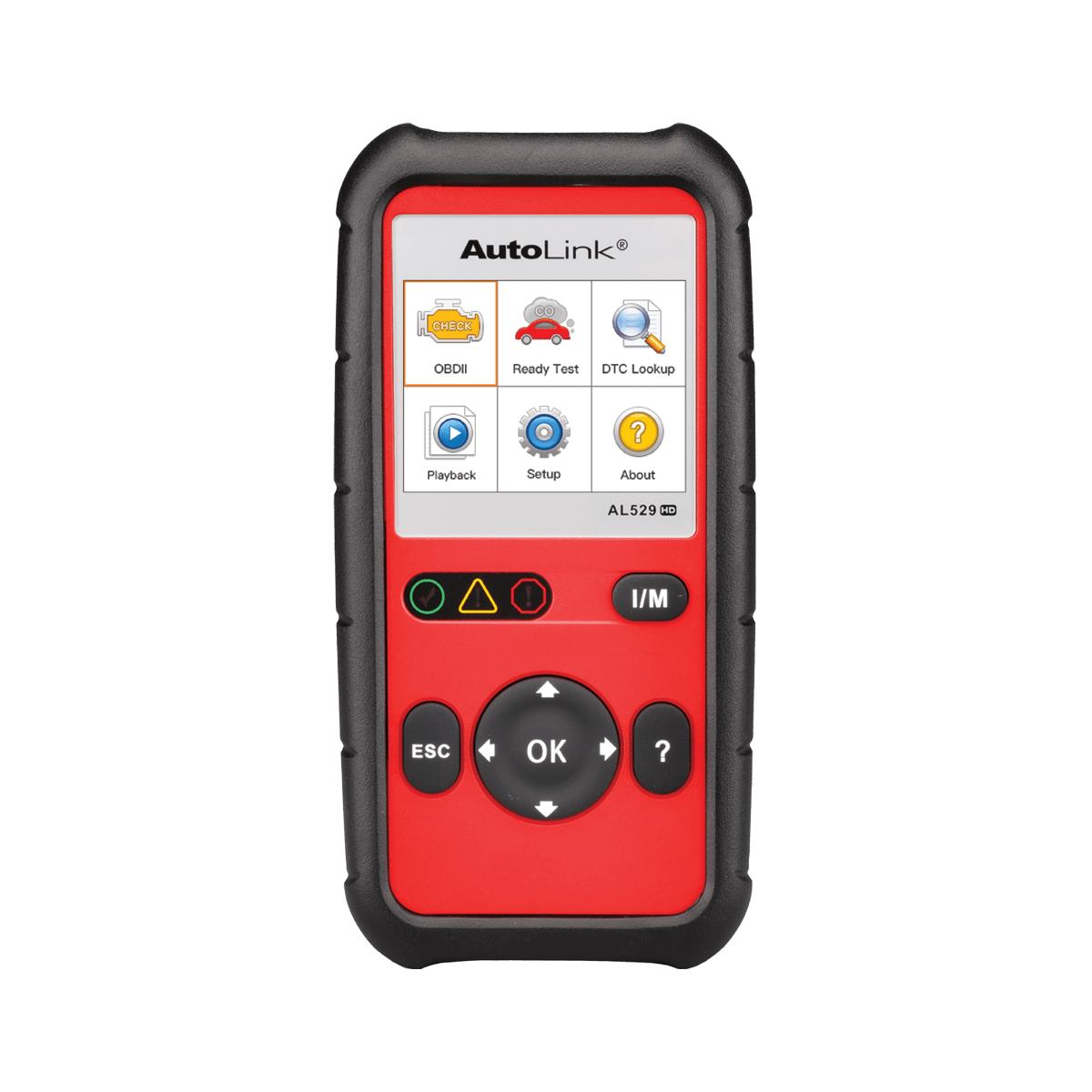

Autel AutoLINK AL529HD Heavy Duty Engine Code Reader

\n

The AutoLINK AL529HD is Autel's dedicated heavy-duty engine code reader for commercial vehicles Class 1 through Class 9 — from light-duty pickups at 0–6,000 lbs all the way up to Class 9 semis at 33,000+ lbs. If your shop sees trucks, fleets, or mixed commercial traffic, this is the tool that bridges the gap between a standard OBDII reader and a full commercial vehicle scan tool. At under 00, it gives you J1939 and J1708 protocol support, live data graphing, and Deutsch connector compatibility in a pocket-sized unit.

\n\n

Who This Tool Is For

\n

The AL529HD is built for:

\n

\n
• Truck shops and fleet maintenance operations that need to pull and clear commercial vehicle engine codes without paying for a full-featured commercial scanner
\n
• General repair shops that occasionally see Class 3–6 medium-duty trucks and need a way to read HD engine codes beyond standard OBDII
\n
• Mobile technicians working roadside service on commercial vehicles — the 0.533 lb weight and pocket size make it practical to carry
\n

\n

Note: the AL529HD handles engine codes only on heavy-duty vehicles. It does not read ABS, SRS, or transmission codes on commercial trucks. For full HD system coverage, you would need to step up to something like the Autel MS909CV.

\n\n

Heavy-Duty Protocol Support

\n

This is the key feature that separates the AL529HD from a standard code reader. It supports:

\n

\n
• J1939 — the CAN-based heavy-duty diagnostic protocol used on virtually all modern commercial vehicles
\n
• J1708 — the older RS-485 based protocol found on legacy trucks (pre-2000s commercial equipment)
\n
• OBDII — all 10 test modes for light-duty and Class 1–2 vehicles 1996 and newer (domestic, Asian, European)
\n

\n\n

What Is Included in the Box

\n

\n
• AutoLINK AL529HD tool
\n
• Deutsch 9-pin connector (heavy-duty trucks)
\n
• Deutsch 6-pin connector (heavy-duty trucks)
\n
• OBDII cable (16-pin)
\n
• USB mini 2.0 cable for PC updates
\n

\n

The inclusion of both Deutsch 9-pin and Deutsch 6-pin adapters out of the box is a real convenience — these are the two most common heavy-duty diagnostic port configurations on commercial trucks, and you will not need to source them separately.

\n\n

Key Features

\n

\n
• Read and erase heavy-duty engine DTCs — covers Class 1–9 commercial vehicles
\n
• Graph, record, and play back live data — capture live sensor readings for intermittent fault diagnosis
\n
• Display live and freeze frame data — see what the engine was doing at the moment of a fault
\n
• One-touch I/M readiness with LED indicator — quick emissions pass/fail check
\n
• Enhanced Mode 6 diagnostics — access detailed OBDII monitor test results
\n
• All 10 OBDII test modes per J1979 spec
\n
• AutoVIN detection — automatic vehicle identification on 2006+ vehicles
\n
• Manufacturer-specific codes — reads power system codes for Ford, GM, and Chrysler
\n
• Save files with Micro SD card — card not included; use any standard Micro SD
\n
• Tri-lingual software — English, Spanish, and French
\n

\n\n

Technical Specifications

\n

\n
• Display: 2.8-inch LCD, 320x240 dpi, full color
\n
• Connectivity: USB mini 2.0 / OBD II DB15
\n
• Power: 9.0 to 28.0 V via vehicle battery (supports both 12V and 24V commercial vehicle systems)
\n
• Operating Temperature: 0C to 60C (32F to 140F)
\n
• Storage Temperature: -20C to 70C (-4F to 158F)
\n
• Dimensions: 183 mm x 91 mm x 33 mm (7.2 x 3.58 x 1.3 inches)
\n
• Weight: 242 g (0.533 lb.)
\n

\n\n

Software Updates

\n

Software updates are free for the life of the tool, downloaded via USB connection to a PC. No subscription required. The tool ships with a 1-year limited warranty.

\n\n

How the AL529HD Compares

\n

The AL529HD sits between Autel's light-duty-only code readers and the MS909CV full commercial vehicle diagnostic tablet. For most shops that see commercial vehicles but do not need full HD system diagnostics, the AL529HD hits the right price point. It handles the most common use case: engine codes and emissions on the fleet.

\n\n

Why Buy From OEM Diagnostic Tools?

\n

OEM Diagnostic Tools has specialized in professional diagnostic equipment since 2016. We carry the full Autel lineup and can help you figure out whether the AL529HD is the right fit for your fleet and shop situation. Every purchase includes free shipping, a full manufacturer warranty, and free tech support at 866-217-0063. We give honest upgrade guidance — we will tell you when you need more tool, and when you do not.
