Product Description
Autel CV ADAS LDW MA600 (CVMALDW) — Commercial Vehicle LDW Calibration System, No Tablet
The Autel CVMALDW is a complete Commercial Vehicle ADAS Lane Departure Warning calibration system built on the MA600 portable calibration frame, without an included tablet. At $11,780, this is the right buy for shops that already own a MaxiSYS commercial vehicle diagnostic tablet and want the MA600-based CV LDW calibration hardware without paying for a duplicate tablet.

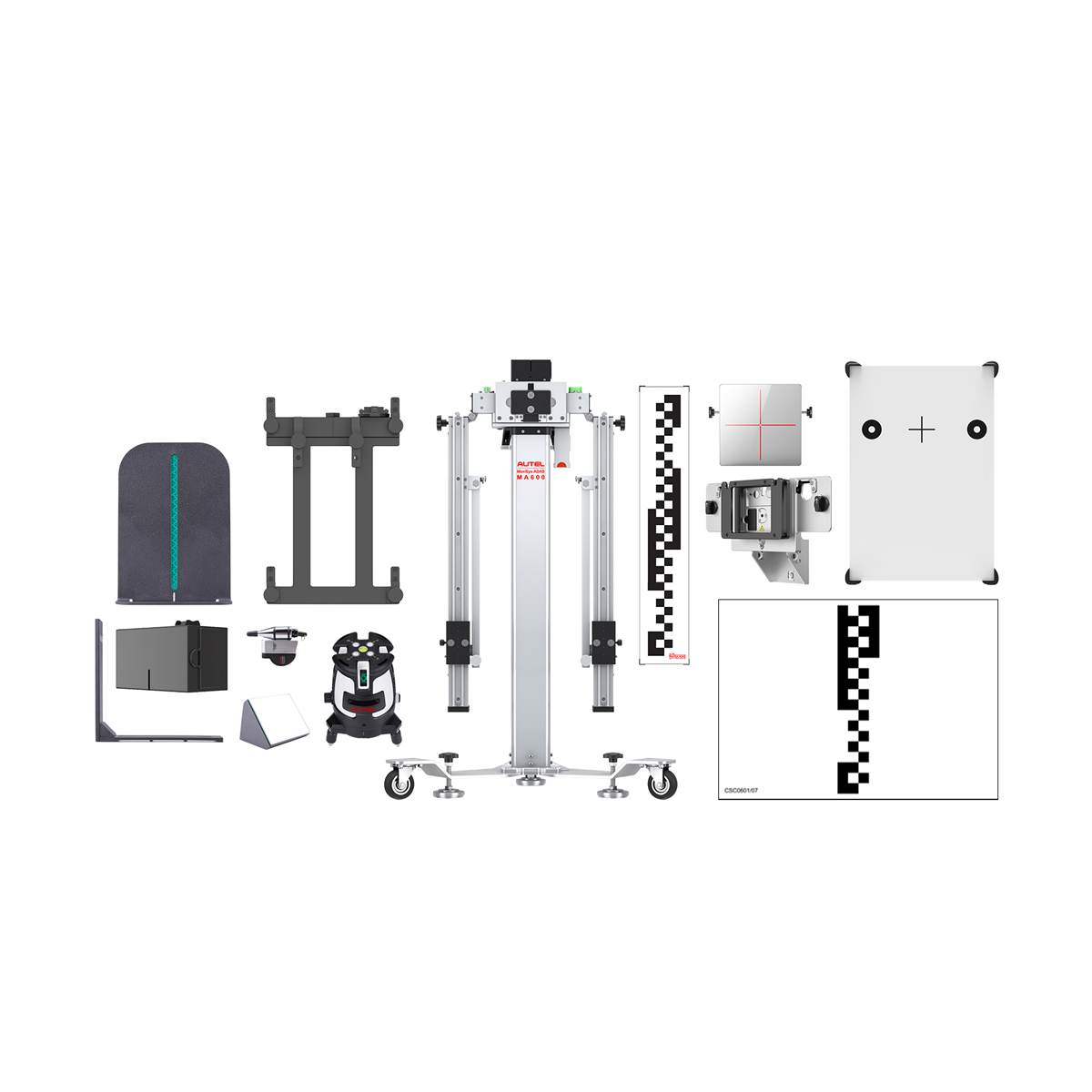

What's Included
Based on Autel's CV ADAS LDW MA600 system documentation:
- MA600 Mobile Calibration Frame with positioning tools including 5-line and 2-line lasers
- ADAS calibration software supporting static and dynamic LDW calibration on commercial vehicles
- LDW calibration support for light and medium-duty vehicles including Mercedes-Benz Sprinter and RAM ProMaster vans
- Static calibration for heavy-duty vehicles with Bendix Wingman forward-facing ADAS systems
- LDW patterns with bracket for Bendix Wingman-equipped heavy-duty trucks
- ACC reflector for radar-equipped Bendix Wingman systems
- LDW target storage case
- One-year limited warranty
- Tablet not included
What This System Calibrates
- Static LDW calibration on light, medium, and heavy-duty commercial vehicles
- Dynamic calibration support for Class 3-5 and Class 6-8 vehicles (via compatible MaxiSYS tablet)
- Mercedes-Benz Sprinter vans (static LDW)
- RAM ProMaster vans (static LDW)
- Heavy-duty trucks with Bendix Wingman system (static LDW + forward collision warning pattern)
CVMALDW vs. CVMALDWT — Tablet vs. No Tablet
- CVMALDW (this item, $11,780): MA600 + CV LDW calibration system — tablet not included
- CVMALDWT ($17,230): Same system + MaxiSYS MS909CV tablet
The $5,450 difference is essentially the cost of the MS909CV. If you already own that tablet, choose CVMALDW. If you are starting from scratch, the T-version is the better single-purchase option.
MA600 Mobile vs. Standard Frame
The MA600 is portable — it can be repositioned between bays and does not require a dedicated fixed installation. For shops with multiple bays or limited dedicated space, the mobile frame offers flexibility that standard fixed-frame systems do not. Bay size requirement is 24ft x 34ft minimum.
