Product Description

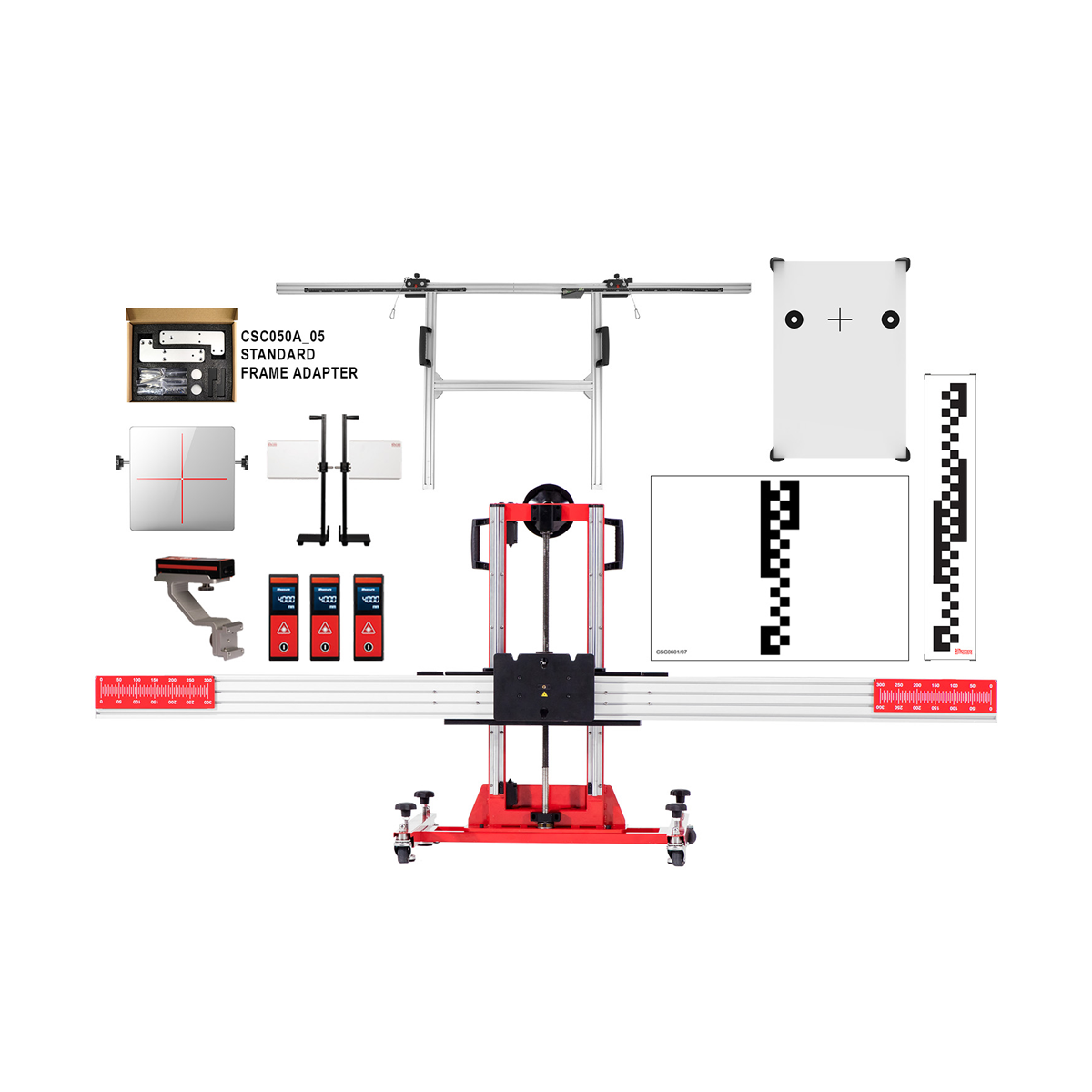

Autel CV ADAS LDW Standard (CVALDW20)
The Autel CVALDW20 is a complete Commercial Vehicle ADAS Lane Departure Warning (LDW) calibration system built on the standard (fixed bay) Autel ADAS frame. At $12,874, this is a full-featured static LDW calibration system for shops doing a high volume of commercial vehicle ADAS work from a dedicated bay.
What LDW Calibration Covers
Lane Departure Warning systems on commercial vehicles use forward-facing cameras mounted at the windshield to detect lane markings. When the camera is disturbed — through windshield replacement, mounting bracket service, front-end collision work, or any related repair — it requires static recalibration using manufacturer-specified target patterns placed at precise distances in front of the vehicle. The CVALDW20 provides the complete setup for that work.
Standard Frame vs. MA600 Mobile Frame
The CVALDW20 uses the standard (fixed installation) Autel ADAS frame. If you need a portable system that can move between bays or go to a fleet yard, look at the MA600-based packages (CVMALDW, CVMALDWT). The standard frame is better suited for dedicated ADAS bays with high volume. Prices differ accordingly — the standard frame version at $12,874 vs. the MA600 mobile version at $11,780.
Key Details
- Type: Complete static LDW ADAS calibration system — standard frame
- Application: Commercial vehicle Lane Departure Warning camera calibration
- Vehicle coverage: Light, medium, and heavy-duty commercial vehicles
- Tablet included: No (tablet sold separately — see CVALDW20T for tablet-included version)
- Price: $12,874
Need a Tablet Included?
The CVALDW20T ($18,233) bundles this calibration system with the MaxiSYS MS909CV commercial vehicle diagnostic tablet. If you are starting fresh and need both the calibration hardware and the diagnostic tablet, the T-version is the better buy.
Note: Detailed specifications were not available from the manufacturer page at time of writing. Call us for full contents list and compatibility details.
