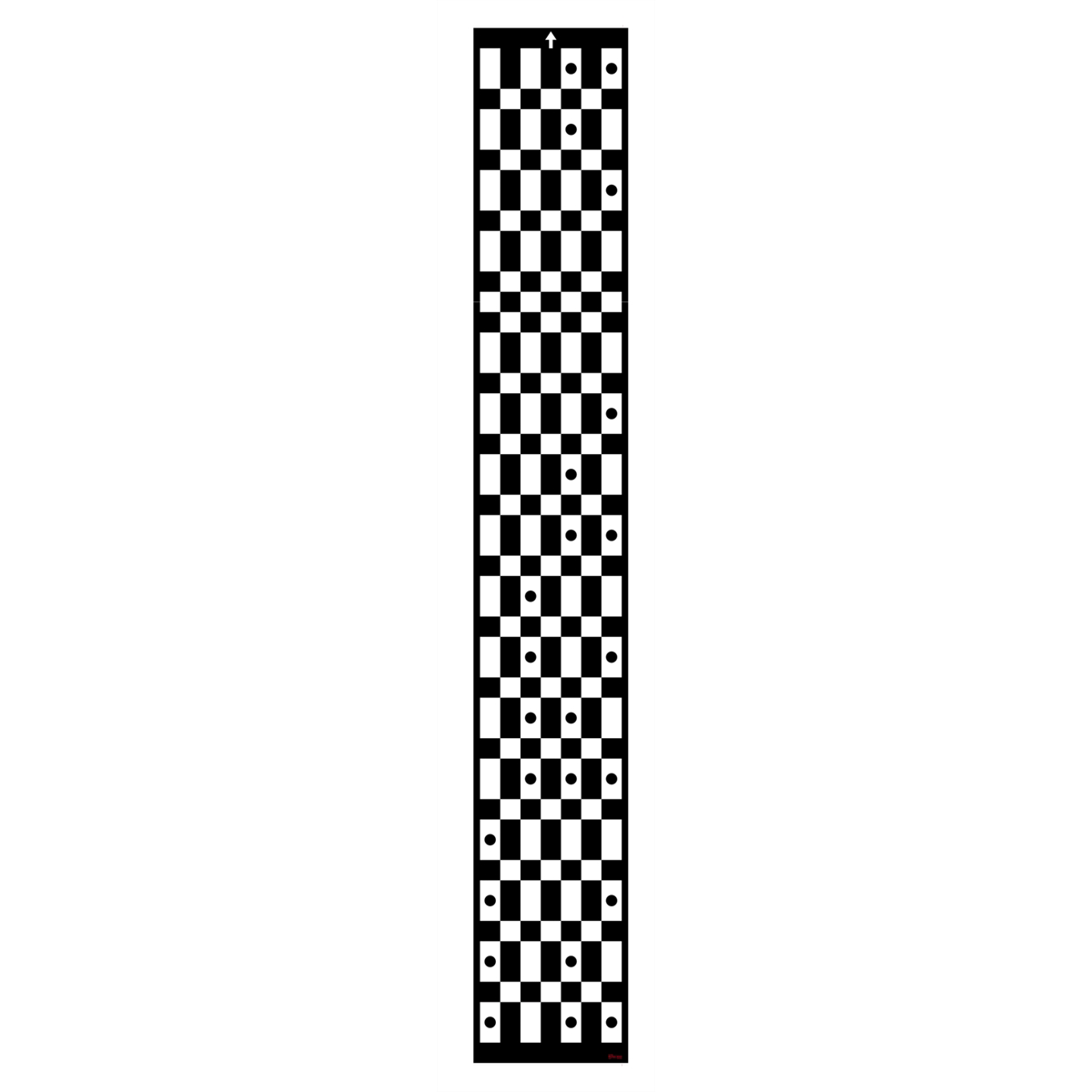

Autel Ford AVM Pattern Package (CSC1004-05)
The Autel CSC1004-05 is an Around View Monitor (AVM) calibration pattern package for Ford vehicles. This package provides the manufacturer-specified target patterns needed to perform static calibration of Ford 360-degree surround view camera systems after any service that disturbs camera alignment — including glass replacement, front-end collision repair, and camera-related service.
What AVM Calibration Requires
Ford's surround view systems use multiple cameras whose images are stitched together to form a seamless overhead view. Once any camera is moved, replaced, or the mounting structure is disturbed, the stitching breaks down. Static AVM calibration with the correct target patterns re-establishes the relationship between cameras and restores system function. Without proper calibration, the surround view system will display distorted or misaligned images and may store DTCs.
Application
- Vehicle make: Ford
- System: 360-degree Around View Monitor (AVM) surround view cameras
- Calibration type: Static (in-bay pattern calibration)
- Compatible with: Autel ADAS calibration systems (verify with your frame/tablet configuration)
- Price: $1,795
Who Needs This Package
Collision shops and glass shops performing work on late-model Ford trucks and SUVs equipped with surround view — including popular F-150, Explorer, and Expedition models — need this pattern package to complete ADAS recalibration. At $1,795, it is a necessary add-on for shops billing AVM calibration work on Ford vehicles.
Note: Complete vehicle compatibility list and detailed specs were not available from the manufacturer page at time of writing. Call us to confirm before ordering.
Why Buy From OEM Diagnostic Tools?
OEM Diagnostic Tools has specialized in ADAS calibration equipment since 2016. We stock the Autel ADAS pattern library and can confirm which packages you need for your Ford AVM work. Free shipping. Call 866-217-0063 for compatibility questions. Full warranty on all products.
Call 866-217-0063 for quick answers and help!
