Product Description

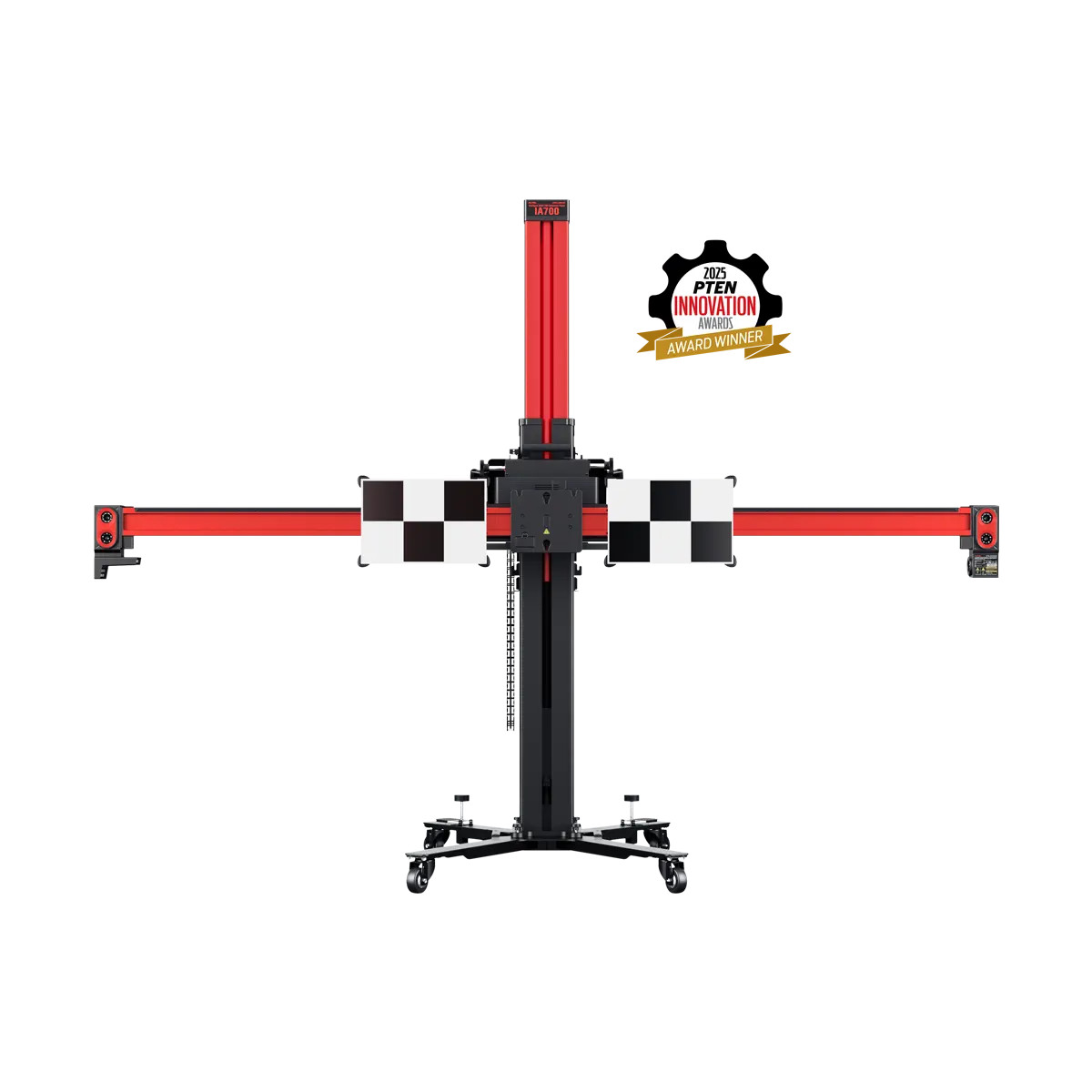

Autel IA700 ADAS Calibration Frame
The Autel IA700 (frame only) is the base IA700 platform — a modular ADAS calibration frame with wheel alignment pre-check capability and optical target positioning. This SKU is the frame alone — no tablet and no ADAS calibration targets are included. It is the right starting point for shops that already own a compatible Autel MaxiSYS 909, MS919, or MS Ultra tablet and want to add the IA700 frame to their existing setup, or for shops that want to start with alignment pre-check only and add ADAS target packages incrementally.
What's Included
- IA700 Calibration Frame with robotic crossbar and 6 HD positioning/tracking cameras
- Four tire clamps with camera targets
- Steering wheel lock
- Brake chocks
- Power supply
- Alignment aid
- Frame cover (dust protection)
- One-year Limited Warranty
What You Need to Supply
- MaxiSYS 909, MS919, or MS Ultra tablet — required to operate the system
- ADAS calibration software upgrade card — required for ADAS calibration functions
- ADAS targets/patterns — required for any ADAS calibration work (LDW targets or all-systems packages available separately)
Who Should Buy the Frame-Only Package
The IA700 frame-only makes sense if:
- You already own a compatible MaxiSYS tablet and do not want to pay for a second tablet bundled in
- You want to start with alignment pre-check capability and add ADAS target packages as your calibration volume grows
- You operate an IA900 system and want to add IA700 as a second frame — the IA700 uses the same targets, so you are not duplicating that investment
- You are an existing MA600 user moving to optical positioning — the IA700 is compatible with MA600 targets, meaning your existing target investment transfers over
Target Compatibility Advantage
The IA700 is compatible with MA600 and IA900 system targets, patterns, and calibration components. Autel explicitly positions this as the ideal upgrade path for MA600 users (adding optical positioning without buying new targets) and for IA900 users (doubling calibration capacity without buying a second target set). This is a real cost advantage over systems that require you to purchase all-new accessories.
IA700 Platform Core Features
Fully Optical Target Placement — 6x Faster Than Mechanical
The IA700 uses six high-definition cameras embedded in the frame's crossbar, combined with camera-equipped tire clamps, to optically determine the exact position of targets and patterns relative to the vehicle. The MaxiSYS tablet calculates current angle, distance, and offset, and displays easy-to-follow instructions for frame adjustments. Green checkmarks confirm each parameter when correct position is reached. This eliminates the tape measure and manual measurement approach entirely — Autel states the optical system reduces setup time by 6x versus mechanical measurements.
Robotic Crossbar with Automatic Height Adjustment
Six HD tracking cameras in the removable crossbar monitor tire clamp target positions. The robotic frame movement sets the vertical calibration position automatically to 0.02° accuracy — the same spec as the IA1000. No manual cranking to estimate heights.
Integrated Wheel Alignment Pre-Check
Every IA700 package includes wheel alignment pre-check. Before performing any ADAS calibration, the system optically measures the vehicle's current alignment specifications and compares them against OEM tolerances. If the vehicle is within spec, the technician can proceed to calibration with confidence. If not, the system flags it. This is a critical step — misaligned vehicles produce inaccurate and potentially unsafe ADAS calibrations, and the alignment pre-check generates a documented report showing the vehicle was within OEM tolerances before calibration began.
Unlevel Floor Compensation
Not every shop floor is perfectly level, and mobile calibration adds additional surface variability. The IA700 compensates for unlevel floors — you select the surface type (level, unlevel, or on a rack) and the system accounts for it. This eliminates failed calibrations due to floor conditions, which is a real problem with systems that require a perfectly level surface.
Quick Disassembly for Mobile Use
The IA700 breaks down into 5 primary parts in under 90 seconds for transport between bays or between shops. The included dust cover protects the system when stored. For shops that do mobile ADAS calibration at dealerships, body shops, or fleet locations, the IA700's portability is a genuine operational advantage.
Target and System Compatibility
The IA700 uses the same targets, patterns, and calibration components as Autel's MA600 and IA900 systems. If your shop already operates an MA600 or IA900, an IA700 adds a second calibration bay without purchasing a second complete set of targets — existing targets work on both systems. For MA600 users, the IA700 adds optical positioning and alignment pre-check, a meaningful upgrade in speed and accuracy.
Tablet Compatibility
The IA700 requires a MaxiSYS 909, MS919, or MS Ultra tablet plus an ADAS calibration software upgrade card for static and dynamic calibration coverage. Packages with a "T" suffix include the MaxiSYS 909 S2 tablet; packages without "T" require you to supply a compatible tablet separately.
IA700 Package Lineup
- IA700 — Frame only, alignment pre-check only (no tablet, no calibration targets)
- IA700T — Frame + MaxiSYS 909 S2 Tablet (alignment pre-check + tablet, no ADAS targets)
- IA700LDW — Frame + LDW targets (no tablet)
- IA700LDWT — Frame + MaxiSYS 909 S2 + LDW targets
- IA700AS — Frame + all-systems targets (no tablet)
- IA700AST — Frame + MaxiSYS 909 S2 + all-systems targets
