Autel MaxiSYS IA900AST — IA900WA Frame with All Systems ADAS Targets and MSULTRAADAS Tablet
The IA900AST is Autel's most complete IA900 package: the IA900WA 3-in-1 calibration frame, the full All Systems ADAS target set covering cameras, radar, LiDAR, and Night Vision, and the 12.7-inch MSULTRAADAS wireless tablet with preloaded alignment and ADAS software — all in one purchase. This is the configuration collision centers and dealerships order when they want a turnkey solution with no additional items to source.
What Is Included vs. Other Packages
| Package | Frame + 24" Display | MSULTRAADAS Tablet | ADAS Targets |
|---|---|---|---|
| IA900WA | Yes | No | None |
| IA900WAT | Yes | Yes | None |
| IA900LDW | Yes | No | LDW cameras |
| IA900LDWT | Yes | Yes | LDW cameras |
| IA900AS | Yes | No | All Systems (LDW+AVM+BSD+ACC+LIDAR+NVS+RCW) |
| IA900AST | Yes | Yes | All Systems |
All Systems ADAS Target Coverage
- LDW (Lane Departure Warning) — Forward camera calibration: Mercedes-Benz, Nissan, Infiniti, Hyundai, Kia, Toyota, Lexus, Mazda, Mitsubishi, Subaru, Volkswagen, Audi, Alfa Romeo
- AVM (Around View Monitoring) — 360° surround cameras: Nissan, Mercedes-Benz, Volkswagen, Honda, GM, Toyota, Mitsubishi
- BSD (Blind Spot Detection) — Side and rear radar/camera calibration
- ACC (Adaptive Cruise Control) — Front radar calibration
- LIDAR — LiDAR sensor calibration
- NVS (Night Vision) — Night vision camera calibration
- RCW (Rear Collision Warning) — Rear-facing calibration: Nissan, Mercedes-Benz, Volkswagen, Honda, GM, Toyota, Mitsubishi
MSULTRAADAS Tablet
- 12.7-inch wireless touchscreen tablet (12.7" MaxiSYS MSUltra ADAS)
- Preloaded with Alignment and ADAS Calibration software
- Dual-screen operation — casts to and from the 24-inch frame display
- Controls crossbar pitch, roll, yaw, and center adjustment
- Illustrated alignment instructions, live readings, required tools, and adjustment locations displayed on a single screen
Frame Capabilities
- Four-wheel alignment and comprehensive ADAS calibration — one frame
- Six high-resolution cameras for wheel target positioning and tracking on lift
- Alignment reading accuracy: 0.02 degrees
- Robotic crossbar movement — frame positioning in under a minute
- Automatic crossbar height: 6-inch minimum to 7-foot maximum
- Self-calibrating cameras — no manual recalibration
- Unlevel floor compensation — works on any surface condition
- Fully optical target placement — 6X faster than mechanical methods
- Alignment coverage: U.S., Asian, and European vehicles, 1996 and newer
Alignment Capabilities
- Camber, caster, toe, thrust angle, SAI, toe-out on turns
- Frame alignment and engine cradle alignment diagnosis
- Bent and loose parts identification
- Tire diameter, tread depth, and pressure
- Wheel-off and raised vehicle adjustment
- Bump steer diagnosis, steering angle relearn
- Vehicle inspection with photos and service recommendations
Documentation and Reporting
Pre-scan identifies all existing faults and active safety systems. Post-scan generates a detailed insurer-ready report confirming all OE-required calibrations were performed to OE specifications. Essential for collision repair billing and insurance company documentation.

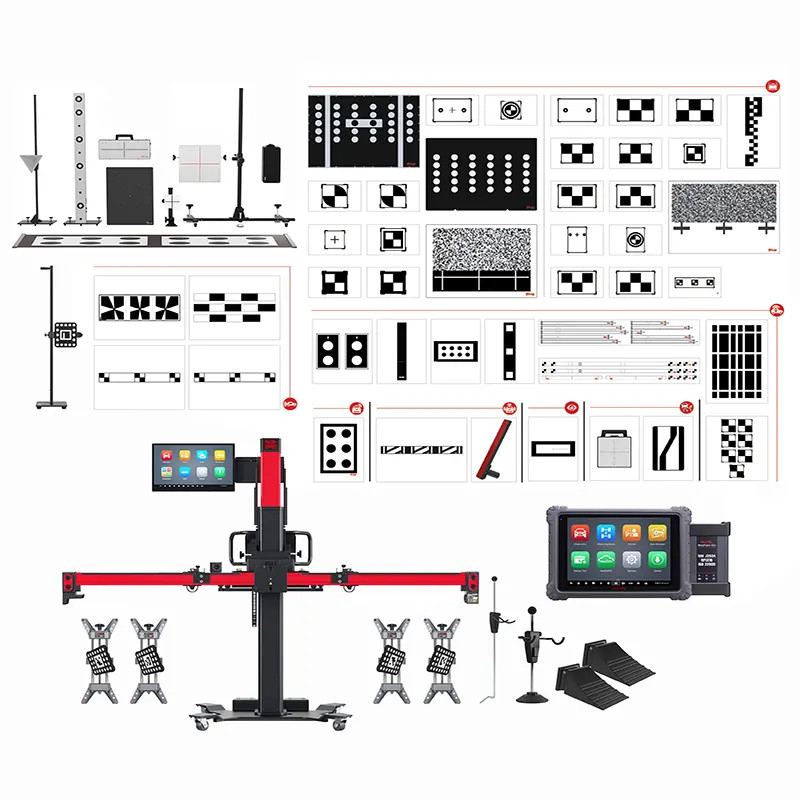

What Is Included
- IA900WA calibration frame with 24-inch touchscreen display
- 12.7-inch MaxiSYS MSULTRAADAS wireless tablet with preloaded software
- All Systems calibration components: LDW, AVM, BSD, ACC, LIDAR, NVS, RCW targets and patterns
- Wheel Clamps (4x)
- Wheel Targets (4x)
- Distance Target (1x)
- Steering Wheel Lock (1x)
- Wheel Chocks (2x)
- Brake Lock (1x)
- One-year limited warranty
Who Buys the IA900AST
The IA900AST is the right choice for:
- Collision repair centers — need radar, LiDAR, and multi-system ADAS calibration on post-repair vehicles
- Automotive dealerships — handling the full range of ADAS systems across their own brand and off-brand vehicles
- Dedicated ADAS calibration shops — want one system that handles every calibration job without missing targets
- High-volume general repair — shops doing enough ADAS work to justify the All Systems investment
