Product Description
Autel MA600 All Systems 2.0 (MAS20) — Complete Portable ADAS Calibration System, No Tablet
The MAS20 (MA600 All Systems 2.0) is the most comprehensive portable ADAS calibration package in the MA600 lineup, priced at $23,485. It includes the MA600 portable frame, all current ADAS software, LDW targets and patterns for major vehicle manufacturers, and the expansion capabilities for AVM, BSD, ACC, LIDAR, NVS, and RCW — everything except a tablet. If you want the tablet included, that's the MAS20T ($26,985, includes the MS909).
This is the right package for a shop setting up a complete ADAS calibration capability from scratch on the portable MA600 platform, or for a shop that already has a compatible MaxiSYS tablet and wants the full coverage set in one purchase.

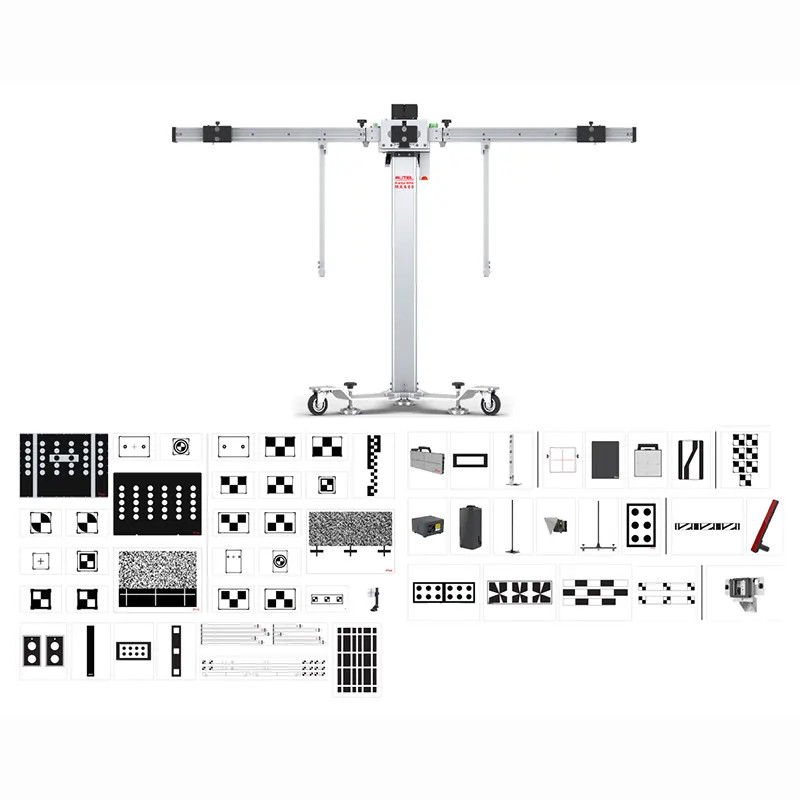

What's Included in the MA600 All Systems 2.0
- MA600 Portable Calibration Frame — collapsible aluminum, 2-line centering laser + 5-line alignment laser, travel case included
- ADAS Software Upgrade — compatible with supported MaxiSYS tablets (see tablet compatibility below)
- LDW (Lane Departure Warning) Targets — for Alpha Romeo, Honda, VW, Mercedes, Hyundai/Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota/Lexus; includes Toyota LDA target
- AVM (Around View Monitor) capability — 360-degree camera system calibration
- BSD (Blind Spot Detection) capability
- ACC (Adaptive Cruise Control) radar capability
- LIDAR calibration capability
- NVS (Night Vision System) calibration capability
- RCW (Rear Collision Warning) calibration capability
- One-Year Limited Warranty
Tablet Not Included — Compatibility Requirements
The MAS20 includes the ADAS software upgrade but no tablet. Compatible MaxiSYS tablets: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE, MSADAS. The MSADAS tablet arrives with ADAS software pre-loaded. All other tablets require the one-time software upgrade included in this package to activate ADAS capability.
Important: tablets with previously expired ADAS software activations are NOT compatible — they require a separate upgrade purchase beyond what's included here. If you have a tablet with expired ADAS software, call us before ordering to confirm compatibility.
If you need a tablet, the MAS20T ($26,985) includes the MS909 tablet.
The MA600 Frame — What You're Getting
The MA600 is designed for shops that can't dedicate a permanent calibration bay to a stationary ADAS system. The frame collapses for storage and transport, ships in two cases (total gross weight 190.2 lbs), and sets up in any bay with adequate length (minimum 24ft x 34ft shop, per Autel specs).
Frame Specifications
- Frame Dimensions (WxDxH): 2510mm (98.82") x 714mm (28.11") x 1480–2105mm (58.27–82.87")
- Pattern Board: 1360mm x 960mm (53.54" x 37.80")
- Crossbar Length: 2510mm (98.82")
- Crossbar Height Range: 350–950mm (13.78"–37.40")
- Pattern Board Height Range: 1000–1600mm (39.37"–62.99")
- Net Weight: 100.8 lbs total
- Laser Class: Class 2 (AA batteries)
- Frame Power: 24V, 3A
- Operating Temperature: 0°C to 50°C
- Certifications: CE, FCC, RoHS
LDW Vehicle Coverage
The MA600 All Systems 2.0 covers LDW camera calibrations for: Alfa Romeo, Honda, Volkswagen, Mercedes-Benz, Hyundai, Kia, Nissan, Infiniti, Mazda, Mitsubishi, Subaru, Toyota, and Lexus. Includes the Toyota LDA (Lane Departure Alert) target specifically. System is expandable with additional expansion packages if you need coverage beyond what's included.
MAS20 vs. MAS20T — Which One?
The only difference is the tablet:
- MAS20 ($23,485) — Frame + all ADAS capability + software. Bring your own compatible MaxiSYS tablet.
- MAS20T ($26,985) — Same system + Autel MS909 tablet included. $3,500 price delta for the tablet.
If you already have an MS906BT, MS908, or similar compatible MaxiSYS tablet, the MAS20 is the better value. If you're starting with no diagnostic tablet at all, the MAS20T saves you from sourcing the tablet separately.
MAS20 vs. Stationary ADAS Systems
Autel's IA900WA is the stationary alternative — a fixed-position frame designed for shops with a dedicated ADAS bay. The IA900WA starts at $25,515 (LDW only, IA900LDW) up to $39,334 (All Systems, IA900AS). The MA600 at $23,485 is more versatile for shops without a dedicated bay, while the IA900WA offers workflow advantages in a high-volume dedicated setup.
Why Buy From OEM Diagnostic Tools?
OEM Diagnostic Tools has been an Autel ADAS specialist since 2016. The MAS20 is one of the more significant capital purchases a shop makes — we'll take the time to confirm your tablet compatibility, walk through the vehicle coverage, and make sure you're buying the right configuration. Free shipping nationwide, full manufacturer warranty, free tech support at 866-217-0063. Honest guidance on whether portable or stationary ADAS fits your shop model.
