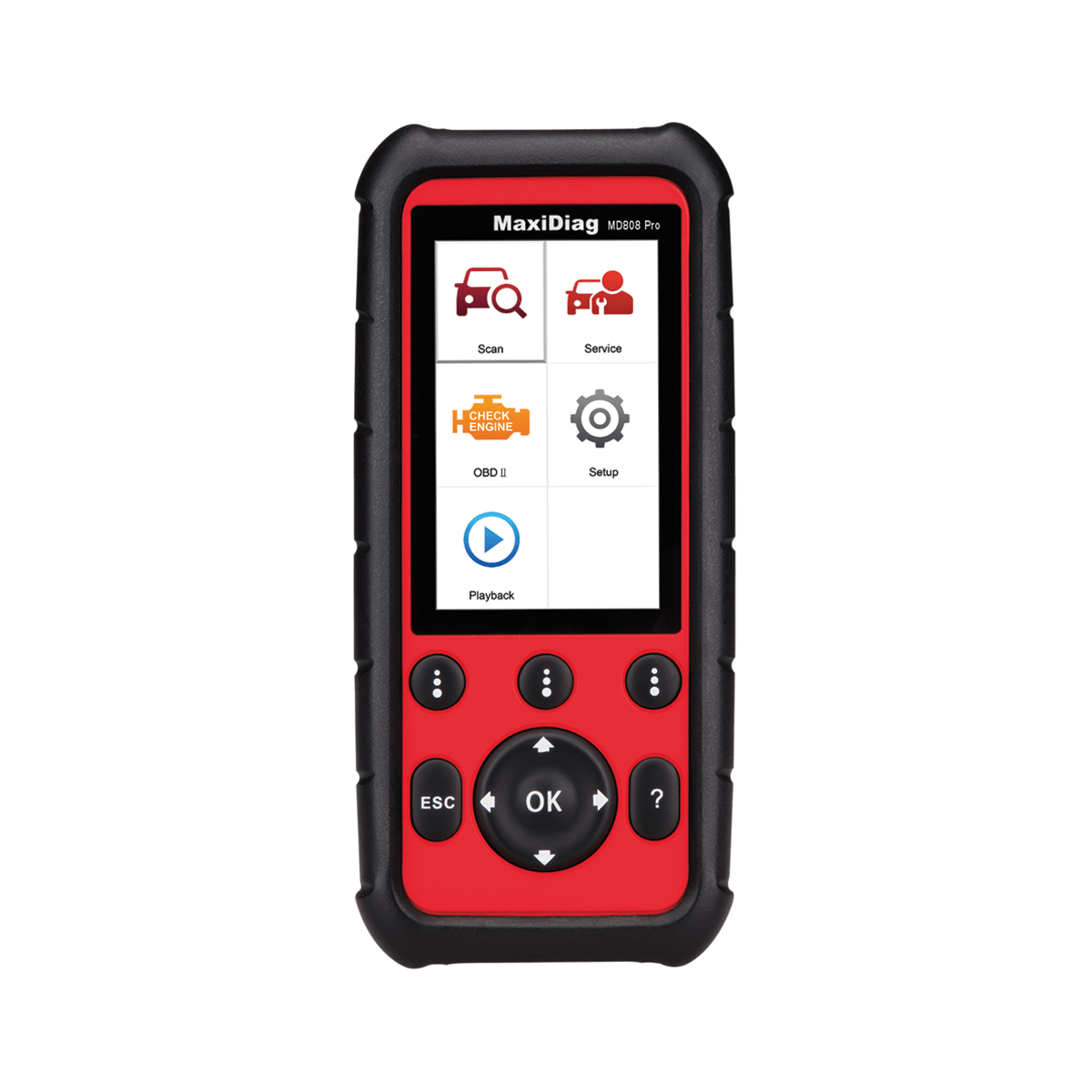

Autel MaxiDIAG MD808P — All-Systems Code Reader with Service Functions
The Autel MaxiDIAG MD808P is a purpose-built all-systems code reader that punches above its price point. If your shop handles oil changes, DPF-equipped diesels, EPB brake jobs, and emissions testing — and you want a dedicated tool that handles all of that without paying for scan tablet features you do not need — the MD808P is worth a serious look at $319.95.
Who This Tool Is For
The MD808P fits shops that need reliable all-systems code reading, a handful of critical service resets, and I/M emissions testing in a compact, handheld form factor. It is not a full bi-directional scan tablet and will not perform coding or adaptations. But for general repair shops doing mainstream service work on domestic, Asian, and European vehicles, it covers the diagnostic bases that matter most.
Core Diagnostic Coverage
- All-Systems AutoSCAN — scans every available module across all systems automatically, not just engine and transmission
- All 10 OBDII Test Modes — full OBDII compliance including enhanced Mode 6 diagnostics for component-level testing
- Live Data with Graphing and Playback — view, graph, and record live sensor data; play back recordings for chasing intermittents
- Freeze Frame Data — captures operating conditions at the moment a fault code was set
- Enhanced Mode 6 Diagnostics — access OBD monitor test results for deeper analysis than basic code reading
- I/M Readiness and Emissions Testing — fast readiness status check for all monitors; essential for shops doing pre-inspection prep work
Service Functions
The MD808P includes direct access to 6 service reset functions that cover the most common maintenance jobs:
- OLS (Oil Light Reset) — oil service interval reset after oil changes
- EPB (Electronic Parking Brake) — retract and release for rear brake pad service; reads and clears EPB trouble codes
- SBC (Sensotronic Brake Control) — Mercedes-Benz electronic brake system service support
- SAS (Steering Angle Sensor) — calibrate steering angle sensor after alignment or steering component replacement
- BMS (Battery Management System) — register new batteries on vehicles with BMS tracking to prevent premature charging issues
- DPF Regeneration — force a stationary DPF regen cycle on diesel vehicles with a blocked or partially clogged particulate filter
- Inspection Service Intervals 1 and 2 — set and reset inspection service interval reminders
Hardware and Display
- 4.0-inch color LCD display at 800x480 resolution — clear and readable in the shop
- ARM Thumb Processor at 400 MHz — handles scanning and display tasks responsively
- 32MB memory at 166 MHz with 16MB Micro SD card included
- Mini USB 2.0 connectivity for PC-based software updates
- Weight: 313g (0.69 lb.) — light enough to hold single-handed at the vehicle
- Strong plastic housing with protective rubber boot for daily shop use
Technical Specifications
- Processor: ARM Thumb Processor, 400 MHz
- Memory: 32MB, 166 MHz
- Display: 4.0-inch LCD, 800x480 resolution
- Connectivity: Mini USB 2.0; 16MB Micro SD card
- Power Consumption: 1.7W
- Operating Temperature: -10°C to 60°C (14°F to 140°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Humidity: 5% to 95% non-condensing
- Dimensions (W x H x D): 202mm x 92mm x 35mm (8.35 in x 3.62 in x 1.4 in)
- Weight: 313g / 0.69 lb.
What Is in the Box
- MD808P scan tool unit
- OBDII cable
- 16MB Micro SD card
Warranty and Software Updates
- 1-year tool warranty
- Free lifetime software updates — valid for the life of the tool; updated via PC connection through Mini USB
MD808P vs. the MaxiSYS Line
The MD808P does not replace a MaxiSYS diagnostic tablet. If your shop needs bi-directional active tests, coding, adaptations, key programming, or a large touchscreen with Android-based workflow, look at the MaxiSYS MS906 or MS909 series. The MD808P is the right choice when you want a fast, portable, code-read-and-reset tool that covers all systems with the six service functions shops use every day — without the price tag of a full professional tablet.
