Product Description

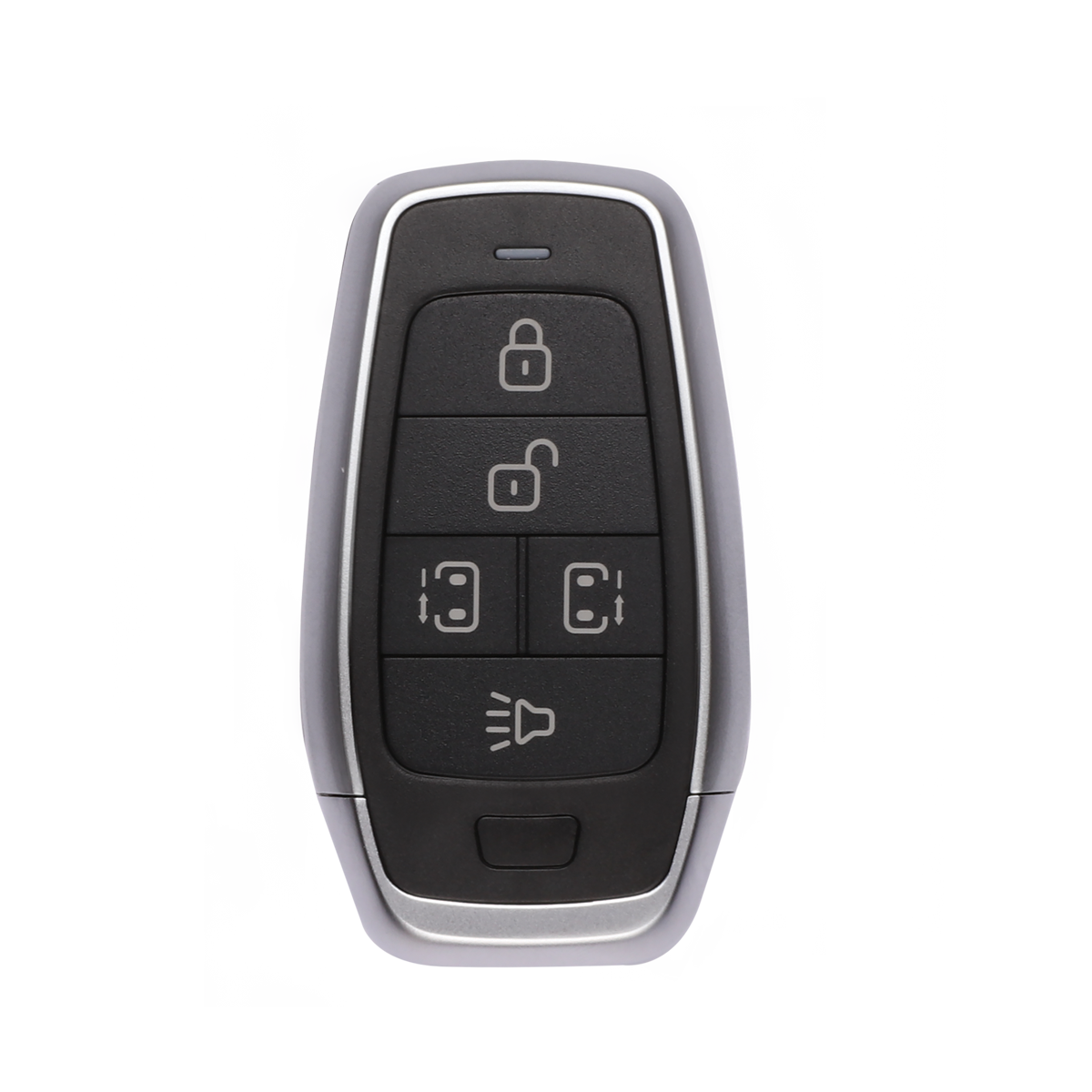

Autel MaxiIM IKEY IKEYAT5PS — 5-Button Universal Key with Air Suspension, No Remote Start
The IKEYAT5PS is the air suspension variant of Autel's MaxiIM IKEY lineup that does not include Remote Start. This is an important distinction. Many vehicles with factory air suspension systems were equipped with remotes that controlled the suspension height and panic but were never set up for remote engine start. If that describes the vehicle on your lift, the IKEYAT5PS is the correct replacement — not the IKEYAT5PRA, which includes Remote Start.
Button Layout
- Lock — Arms the vehicle and flashes the lights
- Unlock — Disarms the system and opens doors per factory setting
- Air Suspension — Adjusts the vehicle's air suspension height remotely; used for towing/hauling prep on trucks and ease of entry/exit on luxury vehicles
- Panic — Triggers the horn and lights for emergency or security use
- Fifth Button: This SKU is listed as 5-button — verify against the Autel IKEY compatibility chart for the exact function of the fifth button on the specific vehicle
Who Needs This Specific Key?
This key is for the customer whose original remote had an Air Suspension control but no Remote Start. Trying to use the IKEYAT5PRA in this situation would give the customer a Remote Start button that does nothing, since the vehicle was not factory-equipped for it. The IKEYAT5PS avoids that problem. Common candidates include older Ram 1500 Air suspension trims, certain Lincoln and Cadillac models, and fleet vehicles that were specifically ordered without remote start.
Technical Specifications
- Frequency: 315 MHz / 415 MHz (dual-frequency, auto-detected during programming)
- Range: Up to 40 meters / 130 feet line-of-sight
- Required Programmer: Autel KM100 (sold separately)
- Battery: CR2032 coin cell — not included, available at any hardware or drug store
- Emergency Mechanical Blade: Not included — order the appropriate blade for the vehicle make separately if needed
Compatible Vehicle Makes
The IKEY platform is designed as a universal aftermarket solution. The IKEYAT5PS has been validated for use with vehicles from:
- Hyundai
- Nissan
- Chrysler (FCA group)
- Honda
- GM (Chevrolet, Buick, GMC, Cadillac)
- Select BMW, Audi, Volkswagen, and Volvo models
Always cross-reference the original remote's button layout and the Autel IKEY compatibility chart before ordering. The KM100 programmer will confirm the pairing before writing the key.
Programming Overview
The IKEYAT5PS programs using the Autel KM100. Connect the KM100 to the vehicle's OBD-II port, select the make and model, and follow the on-screen instructions to write the key. Most experienced technicians complete the process in under 15 minutes. No dealership equipment required. Questions before the job? Call our tech support at 866-217-0063.
What Is Not Included
- CR2032 Battery: Not included. Available at most drug stores, grocery stores, and hardware stores.
- Emergency Blade: Not included. Order the vehicle-specific mechanical blade separately if the customer needs manual entry capability.
IKEYAT5PS vs. Other IKEYs — Make the Right Call
The key distinction for this SKU is what it does not have — Remote Start. Compare before ordering:
- IKEYAT5PCE — Lock, Unlock, EV Charge, Remote Start, Panic
- IKEYAT5PRA — Lock, Unlock, Air Suspension, Remote Start, Panic
- IKEYAT5PS — Lock, Unlock, Air Suspension, Panic (no Remote Start) (this key)
- IKEYAT5TPR — Lock, Unlock, Remote Start, Left Sliding Door, Right Sliding Door, Panic
If you order the IKEYAT5PRA on a vehicle that never had Remote Start, that button will not function and the customer will know you used the wrong key. Match the original remote button-for-button.
