Product Description

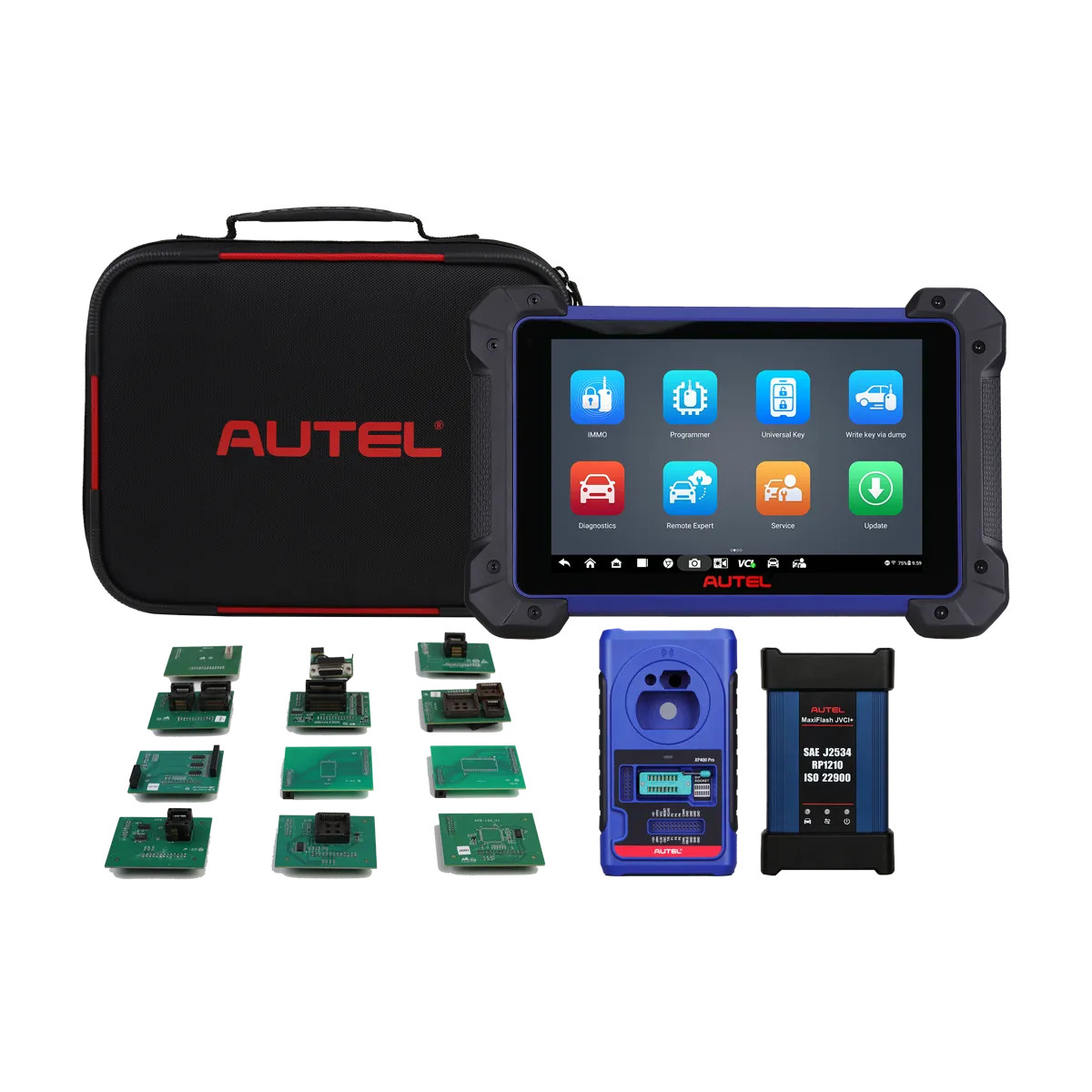

Autel MaxiIM IM608PROIIKPA — Advanced IMMO and Key Programming Bundle
The IM608PROIIKPA is Autel's most complete key programming and immobilizer package, bundling four components into one purchase: the IM608 PRO II 10.1-inch tablet, the XP400Pro key and chip programmer, the JVCI wireless J2534 pass-through device, and the IMKPA Key Programming Adapter Kit. If you are setting up a full-service IMMO operation covering domestic, Asian, and European vehicles — including BMW, Mercedes, and VW/Audi — this is the complete kit.
Note: Autel key programming and IMMO products are designed for professional locksmiths and NASTF-registered Vehicle Security Professionals. Ensure you meet local licensing requirements before purchasing.
What Is In the Bundle
- MaxiIM IM608 PRO II Tablet — 10.1-inch Android 10 touchscreen, octa-core processor, 4 GB RAM + 128 GB storage. The full-function IMMO and diagnostics tablet.
- XP400Pro Key and Chip Programmer — Advanced key programmer that handles chip reading/writing, MCU, EEPROM, IMMO ECU operations, and universal key generation beyond what the XP200 can do. Required for certain European and complex AKL jobs.
- JVCI Wireless J2534 Pass-Through Device — Enables J2534 pass-through programming, which is required for some OEM dealer-level programming procedures on specific makes/models. Wireless connection to the tablet.
- IMKPA Key Programming Adapter Kit — Contains 12 IMMO adapters that unlock specific BMW/Mini/Rolls-Royce and VW/Audi/Mercedes-Benz programming capabilities on the IM608 series.
What the IM608 PRO II Does
The IM608 PRO II handles the full range of IMMO and key programming operations for US, Asian, and European vehicles:
- Key Learning via OBD: 85% of vehicles in North America support key learning directly through the OBD-II port
- PIN and Password Reading: Read IMMO pins and passwords directly from the vehicle for AKL jobs
- All-Keys-Lost (AKL): Full AKL workflow — read PIN, generate key, learn key to vehicle
- IMMO ECU Functions: Backup, restore, adaptation, coding, reset, refresh
- AutoVIN and AutoSCAN: Automatically identifies the vehicle and runs an all-systems scan
- Active Test, Coding, Adaptations: Advanced diagnostic functions beyond basic OBD
- IKEY Programming: Program the full Autel IKEY lineup
Hardware Specifications
- Operating System: Android 10
- Processor: Octa-core (4x 2.2 GHz + 4x 1.9 GHz)
- Memory: 4 GB RAM + 128 GB storage
- Display: 10.1-inch LED capacitive touchscreen, 1920 x 1200 resolution
- Connectivity: Wi-Fi 802.11 a/b/g/n/ac, USB 2.0, Bluetooth 2.1+EDR, HDMI, SD Card (up to 32 GB)
- Camera: 8.0 MP rear camera with autofocus and flashlight
- Battery: 15,000 mAh, 3.8 V lithium-polymer
- Input Voltage: 12 V (9–24 V)
- Dimensions: 300 mm x 220 mm x 50 mm (11.81" x 8.66" x 1.97")
- Weight: 1.58 kg (3.48 lbs.)
Supported Protocols
ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898 (Highspeed, Middlespeed, Lowspeed, Singlewire CAN), GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN
IM608 PRO II vs. IM508S — Which Shop Needs Which?
The IM508S ($999) covers most US and Asian vehicles adequately. The IM608 PRO II is the right choice when your work includes:
- European vehicles: BMW, Mercedes, VW/Audi IMMO jobs — especially AKL on MQB-platform VW/Audi and newer BMW systems — require the XP400Pro and IMKPA adapters that come in this bundle
- J2534 work: If you are doing module programming or reflashing that requires J2534 pass-through, the JVCI device enables this
- Higher volume shops: The 10.1-inch screen, octa-core processor, and 128 GB storage make for a more productive full-day workflow
- Complete IMMO coverage: The XP400Pro handles chip operations, EEPROM/MCU read-write, and advanced key generation that exceed XP200 capability
Annual Update Subscription
The IM608PROIIKPA ships with one year of software updates. Continuing coverage requires the IM6081YRUPDATE Total Care Program at $895/year. Given the breadth of European vehicle coverage and the complexity of IMMO procedures being added continuously, keeping updates current is essential for this class of tool.
Why Buy From OEM Diagnostic Tools?
OEM Diagnostic Tools has specialized in professional automotive diagnostic and key programming equipment since 2016. The IM608PROIIKPA is the most significant investment in the Autel IMMO lineup — we know the product well and can help you evaluate whether this bundle or the standalone IM608 PRO II is right for your specific vehicle mix. Free shipping, free tech support at 866-217-0063, full manufacturer warranty. Call before you buy if you want an honest assessment of what this tool can and cannot do on your customer base.
Call 866-217-0063 for quick answers and help!
