Product Description

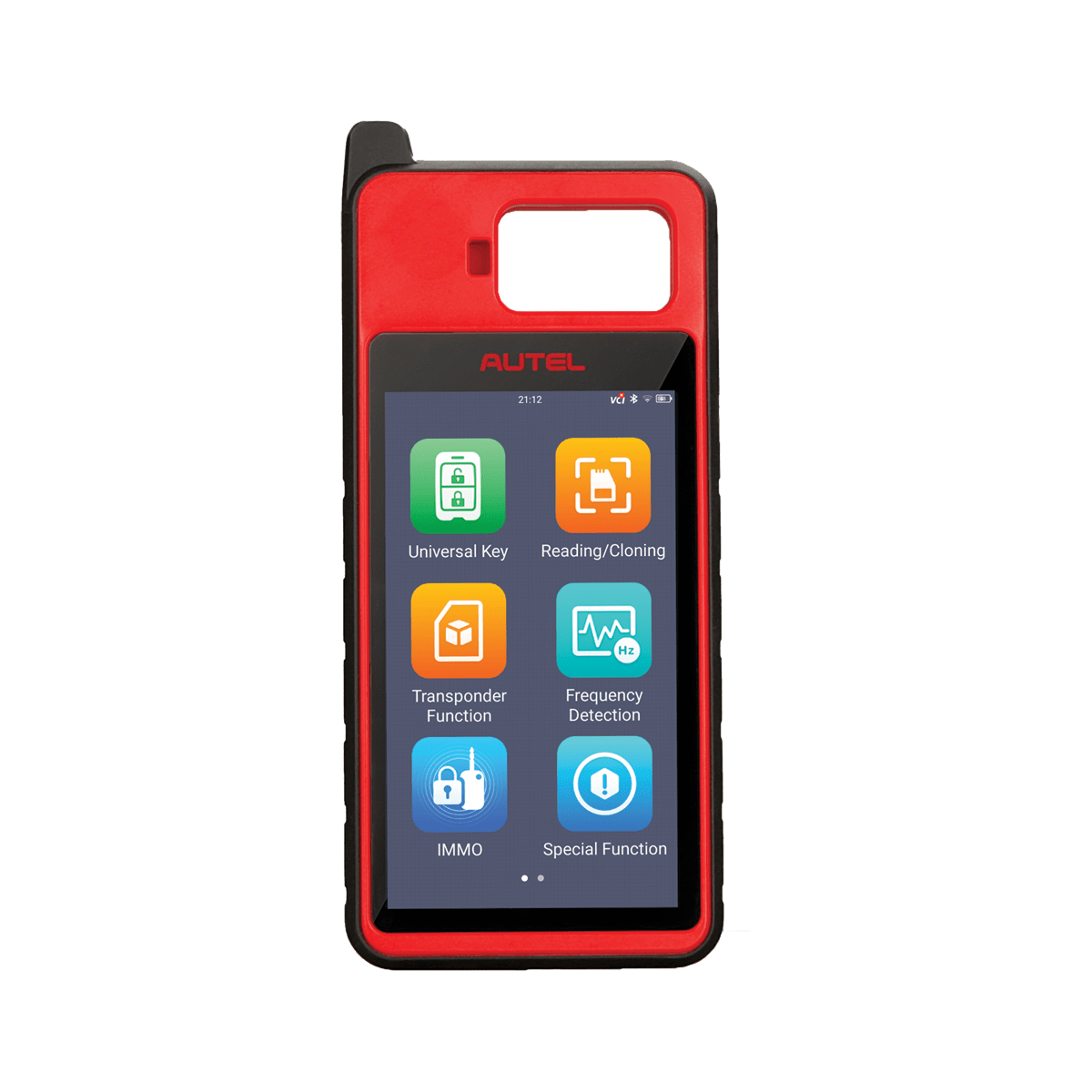

Autel MaxiIM KM100 — Key Programming Tablet with 2 Programmable IKEYs
The Autel MaxiIM KM100 is an all-in-one key programming and immobilizer tablet for professional locksmiths and NASTF-registered Vehicle Security Professionals. The package includes the KM100 5.5-inch Android tablet, Bluetooth VCI V200, and two programmable IKEYs — so you can walk out of the box and do your first key job without a separate key purchase.
This tool is designed for one thing: key programming and IMMO work. It is not a full-function scan tool, but for the shop or locksmith whose primary revenue stream is key programming and immobilizer service, the KM100 gives you the Autel IKEY ecosystem in a purpose-built package at a price well below the IM508 or IM608 series.
Important: Autel key programming and IMMO products are designed for professional locksmiths and NASTF-registered Vehicle Security Professionals. Ensure you meet local licensing requirements before purchasing.
What the KM100 Does
- IKEY Smart Key Programming: Programs Autel's universal IKEY as a smart key replacement for more than 3,000 vehicles via OBD
- One-Minute Key Generation: Fast key creation workflow with easy button customization
- IMMO Key Learning: Key learning, remote control learning, and remote control add functions for BMW, Volkswagen, Honda, GM, and other major brands
- Chip Read and Write: Read and write transponder chips directly
- Chip Cloning: Clone supported transponder types
- Frequency Detection: Identify remote control frequencies
- Transponder Editing: Edit transponder data across 20 supported protocols
- IMMO Information Display: Reads and displays IMMO ECU information, VIN, and pin code for supported vehicles
- Key Unlocking: Unlock locked keys on supported systems
- Key Renewal: Renew used or damaged keys on supported vehicles
Hardware Specs
- Display: 5.5-inch touchscreen, 1280 x 720 resolution
- Operating System: Android 9.0
- Processor: Rockchip PX30 (4x ARM Cortex-A35, 1.5 GHz)
- Memory: 2 GB RAM / 64 GB on-board storage
- Camera: 8 megapixel
- VCI: Bluetooth MaxiVCI V200 (included)
- Connectivity: Wi-Fi, Bluetooth 5.0, USB 2.0 Type-C
- Battery: 4,950 mAh lithium-polymer; charges at 5V/2A
- Dimensions: 200 x 89 x 22 mm (7.9 x 3.5 x 0.87 in)
- Weight: 352.7g (0.8 lb)
- Operating Temperature: -10 to 45 degrees C (14 to 113 degrees F)
- Storage Temperature: -20 to 60 degrees C (-4 to 140 degrees F)
What Is In the Box
- MaxiIM KM100 5.5-inch touchscreen tablet
- Bluetooth MaxiVCI V200
- Two programmable Autel IKEYs
- Power supply
- One year of free software updates
- One-year limited warranty
KM100 vs. IM508 — Which One?
The KM100 is a dedicated key and immobilizer tool. It does key learning, IMMO functions, transponder work, and IKEY programming — and that's the focus. It does not do full OBD diagnostics, bi-directional control, oil service resets, or the broader service functions.
The IM508 series (~$1,400+) adds full OBD diagnostics, service functions, and deeper IMMO coverage on top of key programming. If your shop also does general diagnostics and you want one tablet that handles both, the IM508 is the right upgrade path. If your work is primarily key programming and the occasional IMMO job, the KM100 at $545 does the key work without paying for diagnostic functions you won't use.
The KM100 pairs well with the Key Programming Adapter Kit ($345) if you need BMW/Mini/Rolls-Royce, VW/Audi, or Mercedes-Benz IMMO capability — the adapter kit extends coverage for those platforms that require physical IMMO access beyond OBD.

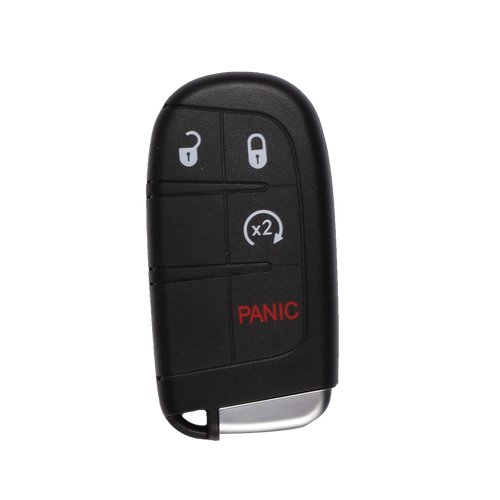

IKEY Coverage
The KM100 programs Autel IKEYs as universal smart key replacements for more than 3,000 vehicles. The IKEY lineup covers most domestic and import applications in Standard, Premium, and Razor tiers with button configurations from 2 to 7 buttons. IKEYs are sold separately (the two included in the KM100 box are a starting inventory).
Why Buy From OEM Diagnostic Tools?
We have specialized in professional key programming and diagnostic equipment since 2016. We stock the full Autel IM and IKEY product line. Free shipping, free technical support at 866-217-0063, full manufacturer warranty, and honest guidance on whether the KM100 or an IM508/IM608 fits your business better.
Call 866-217-0063 for quick answers and help!
