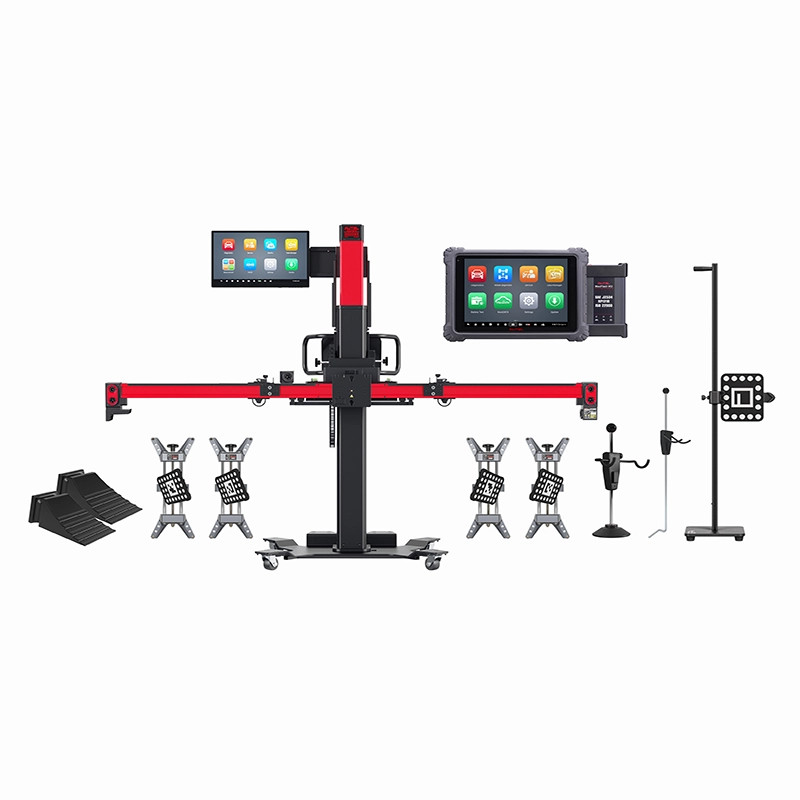

Autel MaxiSYS IA900WAT — IA900WA Frame with MSULTRAADAS Tablet
The IA900WAT is the IA900WA alignment and ADAS calibration frame bundled with the 12.7-inch MaxiSYS MSULTRAADAS wireless touchscreen tablet. If you want the full IA900WA system ready to run the moment it arrives — frame, display, and tablet with preloaded alignment and ADAS calibration software — this is the package to order.
The frame itself is identical to the IA900WA. What the "T" adds is the MSULTRAADAS tablet, which replaces the need to provide your own MaxiSYS diagnostic device for the alignment and calibration workflow. The 24-inch touchscreen display on the frame and the MSULTRAADAS tablet can cast to and from each other for dual-screen operation.
What Is Included vs. IA900WA Base
| Feature | IA900WA | IA900WAT |
|---|---|---|
| IA900WA Frame with 24" Display | Yes | Yes |
| MSULTRAADAS 12.7" Wireless Tablet | No | Yes |
| Alignment Software Preloaded | Requires own tablet | Yes — on MSULTRAADAS |
| ADAS Calibration Software | Requires own tablet | Yes — on MSULTRAADAS |
| LDW/AVM/BSD/ACC/LIDAR Target Package | Not included | Not included |
The IA900WAT does not include ADAS target packages. If you need LDW targets, step to IA900LDWT. If you need the full camera, radar, LiDAR, and night vision calibration package, look at IA900AST.
Frame Capabilities
- Four-wheel alignment and ADAS component calibration from a single stationary frame
- Six high-resolution positioning and tracking cameras in the frame — automatically monitor vehicle height on lift
- Alignment reading accuracy to 0.02 degrees
- Robotic crossbar movement with pitch, roll, yaw, and center control
- Automatic crossbar height adjustment from 6 inches minimum to 7 feet maximum
- Self-calibrating cameras — always accurate without manual recalibration
- Unlevel floor compensation — works on level, unlevel, or rack surfaces
- Folding crossbar with locking mechanism
- Built-in cable management, consolidated power supply
- Alignment coverage: U.S., Asian, and European vehicles, 1996 and newer
MSULTRAADAS Tablet
- 12.7-inch wireless touchscreen tablet
- Preloaded with Alignment and ADAS Calibration software
- Dual-screen operation — casts to and from the 24" frame display
- Displays illustrated alignment instructions, live readings, required tools, and adjustment locations on a single screen
- Controls crossbar pitch, roll, yaw, and center positioning
Alignment Features
- All measurements: camber, caster, toe, thrust angle, SAI, toe-out on turns
- Frame alignment and engine cradle diagnosis
- Tire diameter, tread depth, and tire pressure
- Wheel-off and raised vehicle adjustment modes
- Bump steer diagnosis, steering angle relearn
- Vehicle inspection checklist for tires, brakes, suspension, and steering
- Mark service recommendations and attach photos/notes
ADAS Workflow
- Fully optical target placement — 6X faster than mechanical measurement
- Frame-embedded HD cameras calculate angle, distance, and offset from vehicle to frame automatically
- On-screen prompts guide frame/angle adjustment; green checkmarks confirm each parameter
- Step-by-step illustrated full-color instructions from pre-calibration through documentation
- Pre-scan and post-scan insurer-ready reports
What Is Included
- IA900WA calibration frame with 24-inch touchscreen display
- MaxiSYS MSULTRAADAS 12.7" wireless tablet (preloaded software)
- Wheel Clamps (4x)
- Wheel Targets (4x)
- Distance Target (1x)
- Steering Wheel Lock (1x)
- Wheel Chocks (2x)
- Brake Lock (1x)
- One-year limited warranty
IA900 Package Lineup
- IA900WA — Frame + display, no tablet, no ADAS target package
- IA900WAT — Frame + display + MSULTRAADAS tablet, no ADAS target package
- IA900LDW — Frame + LDW target package, no tablet
- IA900LDWT — Frame + LDW target package + MSULTRAADAS tablet
- IA900AS — Frame + All Systems target package (cameras, radar, LiDAR, NVS), no tablet
- IA900AST — Frame + All Systems target package + MSULTRAADAS tablet
