Product Description

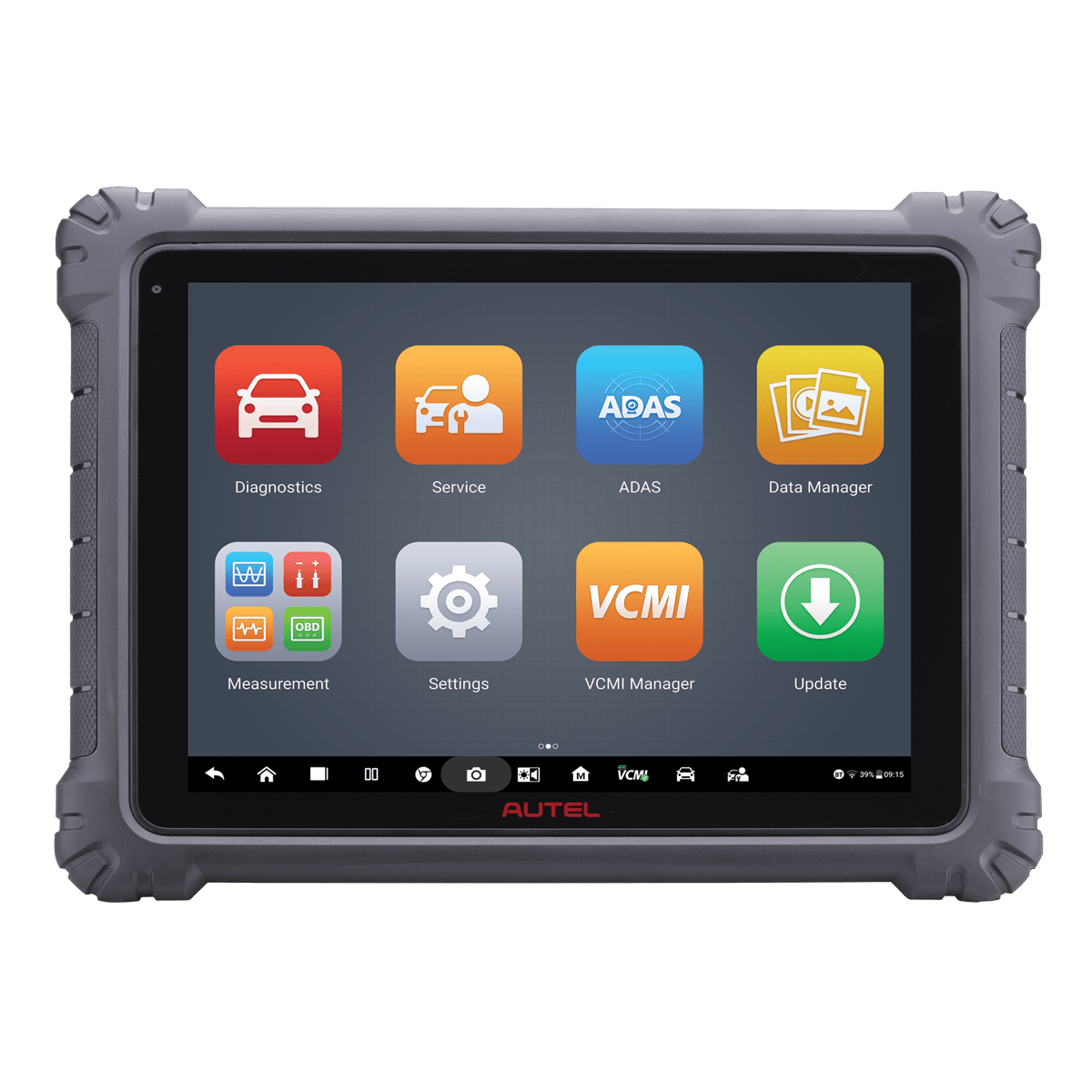

Autel MaxiSYS Ultra — 12.7-Inch Advanced Diagnostic Tablet with VCMI
The Autel MaxiSYS Ultra is a 12.7-inch professional diagnostic tablet that combines advanced full-system diagnostics with the MaxiFLASH VCMI — a 5-in-1 vehicle communication and measurement unit that adds a 4-channel oscilloscope, waveform generator, multimeter, and CAN bus tester to the standard VCI and J2534 pass-through programmer. It is built for shops that want a large-screen diagnostic platform with built-in electrical measurement capability and the option to add ADAS calibration via software upgrade.
The MaxiFLASH VCMI — 5-in-1 Device
- VCI — wireless Bluetooth vehicle communication interface
- J2534 pass-through — OEM module programming and reflashing
- 4-channel oscilloscope — waveform capture for ignition, injection, sensor, and actuator diagnostics
- Waveform generator — generate test signals for circuit testing
- Multimeter — voltage, resistance, and current measurements
- CAN bus tester — verify CAN network signal integrity
Diagnostic Capabilities
- Full OE-level system access — all modules, all systems on 1996 and newer U.S., Asian, and European vehicles
- Bi-directional control — actuator tests, component activation
- Coding and adaptations — OE-level module programming and variant coding
- Service reset functions — oil, EPB, SAS, BMS, DPF, IMMO, TPMS, and more
- All 10 OBDII test modes — live data, freeze frame, Mode 6
- Pre- and post-scan reporting
- Network Topology 2.0 — visual module network mapping with communication status
- Split-screen diagnostics — view scope waveforms and live scan data simultaneously
- Security gateway access — FCA/Stellantis authorized (AutoAuth account required)
- AutoVIN / Auto-Scan
- Cloud-based Data Manager
- ADAS calibration — available with software upgrade; compatible with IA900WA frame system
Large Screen Advantage
The 12.7-inch display at 2732 x 2048 resolution is the largest screen in Autel's standard tablet lineup. For oscilloscope work, the larger screen allows more waveform detail to be visible simultaneously. For technicians who wear gloves or work in demanding bay environments, the larger touch targets and display are genuinely easier to use than smaller tablets.
MSUltra vs. MSUltra ADAS
The MSUltra and MSUltra ADAS use identical hardware. The ADAS configuration (SKU: MSULTRAADAS) includes ADAS calibration and wheel alignment software pre-activated for use with the IA900WA frame system. The base MSUltra (this listing) has ADAS software available as an optional upgrade purchase. If ADAS calibration is part of your workflow now or planned soon, the MSULTRAADAS configuration makes more sense than buying the upgrade separately later.
MSUltra vs. Ultra S2
The Ultra S2 is the current-generation replacement featuring Android 13, a 13.7-inch screen, 12GB RAM, 256GB storage, Wi-Fi 6.0, and the upgraded VCMI2. The MSUltra runs an older Android version with 4GB RAM. If you are buying new, we recommend comparing both — call us and we will give you a straightforward assessment based on your specific needs and budget.
Hardware Specifications
- Operating System: Android 7.0
- Processor: Octa-core (4 x 2.3 GHz + 4 x 1.7 GHz)
- Memory: 4GB RAM / 256GB onboard storage
- Display: 12.7-inch, 2732 x 2048 resolution, capacitive touchscreen
- Battery: 18,000mAh 3.8V lithium-polymer
- Weight: 2.18 kg (4.81 lbs)
- Dimensions: 366.5 x 280.9 x 34 mm (14.43" x 11.06" x 1.34")
- Connectivity: Dual Wi-Fi 802.11 a/b/g/n/ac 2x2 MIMO, Bluetooth 2.1, GPS, 2x USB-A, USB mini, HDMI 2.0, SD card up to 256GB
- Camera: 16MP rear autofocus/flash, 5MP front
- Operating Temperature: 0 to 50°C (32 to 122°F)
- Storage Temperature: -10 to 60°C (14 to 140°F)
Protocol Support
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART, BMW DS2, BMW DS1, SAE J2819 (VAG KW81/KW82), SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
What Is Included
- Autel MaxiSYS Ultra tablet
- MaxiFlash VCMI (5-in-1: VCI, J2534, 4-channel scope, multimeter, waveform gen, CAN tester)
- OBD2 cable, 12V/3A AC/DC power adapter, carrying case
- One-year limited warranty
- One year of free software updates
