Product Description

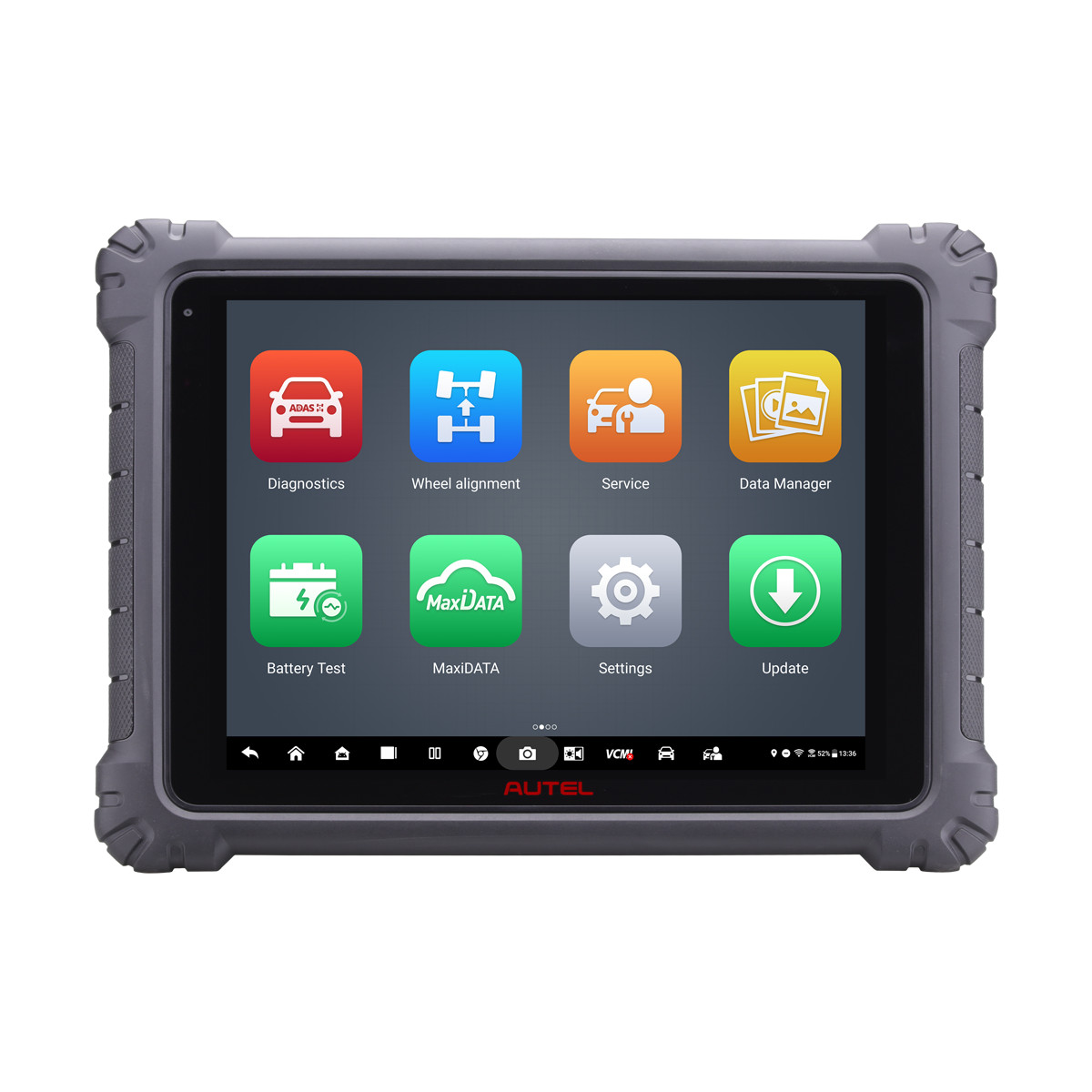

Autel MaxiSYS Ultra ADAS Tablet (MSULTRAADAS)
The Autel MaxiSYS Ultra ADAS Tablet (SKU: MSULTRAADAS) is the 12.7-inch professional diagnostic tablet with ADAS calibration and wheel alignment software pre-activated, compatible with the IA900WA frame system. This is the same hardware as the base MSUltra but ships with calibration software already unlocked, eliminating the need for a separate software upgrade purchase when ADAS work is part of your workflow from day one.
ADAS Calibration Capability
The MSULTRAADAS runs Autel's ADAS calibration software, which supports guided static and dynamic calibration for camera and radar-based advanced driver assistance systems. This includes:
- Forward-facing camera systems (LDW, FCW, AEB, traffic sign recognition)
- Radar-based adaptive cruise control (ACC)
- Blind spot monitoring (BSM)
- Rear view camera systems
- 360-degree surround view systems (where applicable)
- Wheel alignment integration via IA900WA system
Frame compatibility: Compatible with the Autel IA900WA alignment and ADAS frame system. Frame and target kit are sold separately unless specified in a bundle package. Contact us for complete system pricing.
Full Diagnostic Capabilities
- Full OE-level system access — all modules, all systems on 1996 and newer U.S., Asian, and European vehicles
- Bi-directional control — actuator tests, component activation
- Coding and adaptations — OE-level module programming
- Service reset functions — oil, EPB, SAS, BMS, DPF, IMMO, TPMS, and more
- All 10 OBDII test modes
- Pre- and post-scan reporting — essential for collision shop documentation
- Network Topology 2.0
- Split-screen diagnostics
- Security gateway access — FCA/Stellantis authorized
- AutoVIN / Auto-Scan
MaxiFLASH VCMI — 5-in-1 Included
- VCI + J2534 pass-through programming
- 4-channel oscilloscope
- Waveform generator
- Multimeter
- CAN bus tester
MSULTRAADAS vs. MSUltra (Base)
Hardware is identical between both configurations. The difference:
- MSUltra — ADAS software requires a separate upgrade purchase
- MSULTRAADAS — ADAS and wheel alignment software already activated; compatible with IA900WA immediately
If ADAS calibration is part of your current or planned service offering, buying the MSULTRAADAS saves the cost and hassle of the separate upgrade purchase. If you genuinely do not see ADAS work coming to your shop, the base MSUltra costs less.
Hardware Specifications
- OS: Android 7.0
- Processor: Octa-core (4 x 2.3 GHz + 4 x 1.7 GHz)
- Memory: 4GB RAM / 256GB storage
- Display: 12.7" capacitive touchscreen, 2732 x 2048 resolution
- Battery: 18,000mAh 3.8V lithium-polymer
- Weight: 2.18 kg (4.81 lbs)
- Dimensions: 366.5 x 280.9 x 34 mm (14.43" x 11.06" x 1.34")
- Connectivity: Dual Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 2.1, GPS, 2x USB-A, USB mini, HDMI 2.0, SD card up to 256GB
- Camera: 16MP rear autofocus/flash, 5MP front
Why Buy From OEM Diagnostic Tools?
We have been pairing shops with the right Autel ADAS configuration since 2016 — tablet, frame, and targets. Call 866-217-0063 and we will give you a complete picture of what the MSULTRAADAS costs with and without the IA900WA frame, and whether a bundled package makes more financial sense. Free shipping, full warranty, honest guidance.
Call 866-217-0063 for quick answers and help!
