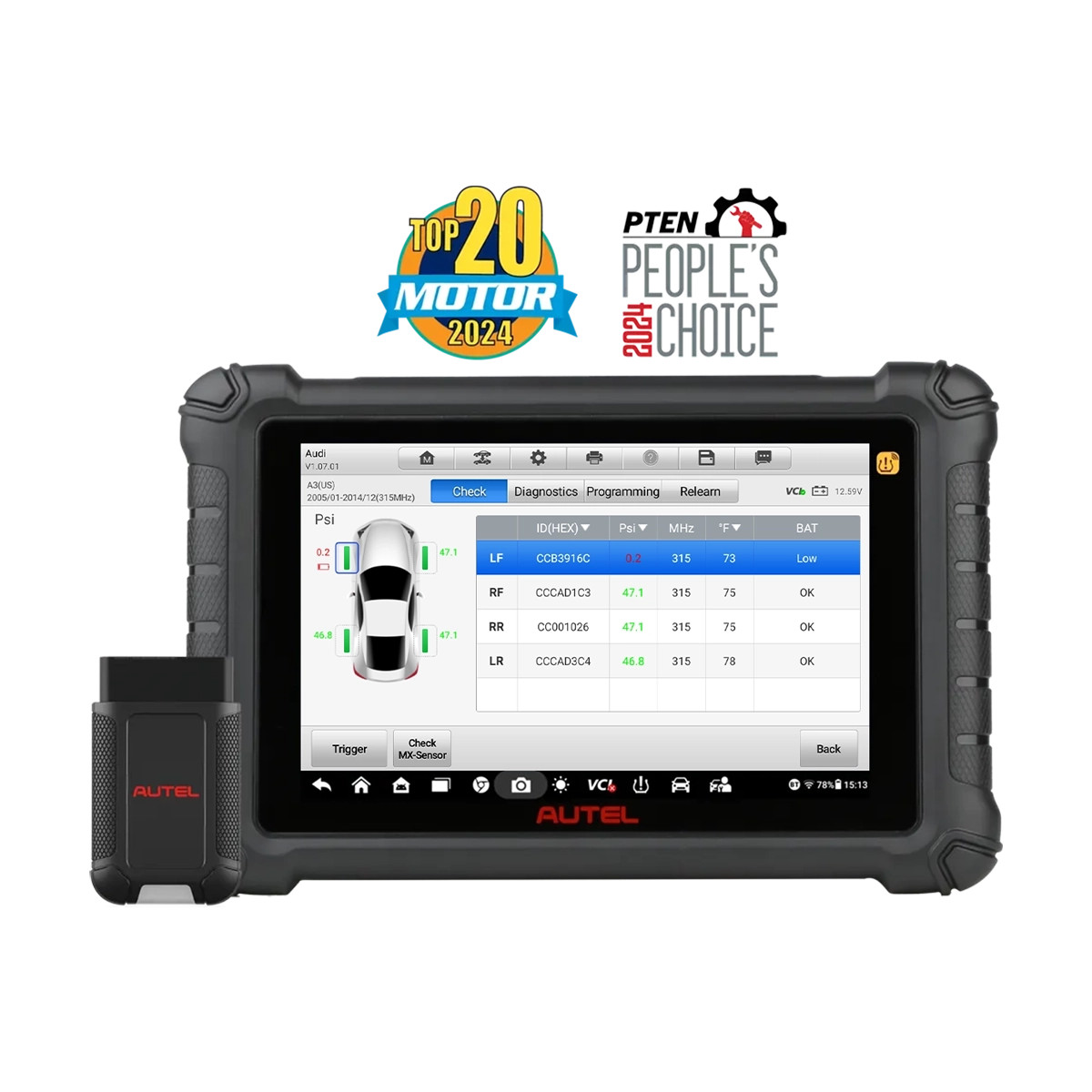

Autel MaxiTPMS TS900 — Three-in-One TPMS, Diagnostics, and Service Tablet
The Autel MaxiTPMS TS900 is an 8-inch Android 11 tablet that handles TPMS service, full all-systems diagnostics, and 40-plus maintenance resets in a single device. If your shop is doing tire work and diagnostic work and you want one tool that covers both without buying a separate TPMS handheld and a separate scan tool, this is what that looks like.
The TS900 covers U.S., Asian, and European vehicles from 1996 forward, handles all known TPMS sensor brands including Tesla OE sensors, and communicates via the MaxiVCI V150 — Autel's enhanced vehicle communication interface supporting the latest protocols including DoIP, CAN FD, and the full list of legacy protocols. The tablet runs on a 1.8 GHz quad-core processor with 4GB RAM and 64GB storage. Battery is 7,700 mAh — rated at approximately 7 hours of continuous use.
TPMS Service Capability
The TS900 covers the full TPMS workflow on passenger, commercial, and off-road vehicles:
- Activate, read, and relearn ALL known TPMS sensors — OEM and aftermarket brands
- Tesla OE sensor support — activate and service Tesla factory TPMS sensors
- Autel BLE Sensor compatible — supports vehicles using Bluetooth Low Energy TPMS sensors, including Tesla
- Program Autel 1-Sensors to replace 99% of TPMS-equipped vehicles on the road today
- 2 MX-Sensor programming methods
- Industry-leading relearn-by-OBD coverage with on-tool relearn procedures
- Enhanced TPMS Status Screen — read ECU sensor IDs, check matching, read and clear DTCs
- TPMS Health Report — generate and share TPMS status reports
- Auto-VIN and Auto-Scan for fast vehicle identification
All-Systems Diagnostics
The TS900 is not a TPMS-only tool. It delivers full all-systems diagnostics with bi-directional controls:
- All systems coverage — all modules in all systems across the full vehicle
- Active Tests and Special Functions — bi-directional component activation and system controls
- Read and clear codes, view Freeze Frame and Live Data
- Pre- and Post-Scans — generate, print, and share scan reports for documentation
- Auto-VIN for immediate vehicle identification
Service Menu — 40-Plus Functions
The TS900's Service Menu provides direct access to more than 40 maintenance and service reset functions. A partial list:
- Oil and service light reset
- Electronic Parking Brake reset
- Brake bleed
- Airbag reset
- Occupancy Seat calibration
- Battery registration and reset
- Throttle body adaptation
- Steering angle sensor reset
- DPF regeneration
- TPMS relearn and sensor programming
- Plus 30+ additional service functions
These are not diag-code-required resets — they are direct service functions accessed from the home menu, which saves time versus navigating through a full diagnostic session to reach a single reset.
Communication Protocols
The MaxiVCI V150 included with the TS900 supports the full protocol stack for modern and legacy vehicles:
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD
TS900 vs. TS608 vs. TS508WF — Choosing the Right Tool
- TS508WF — handheld, TPMS only, 2.3-inch display, lightweight, free lifetime updates. Best for TPMS-only work or as a dedicated tire bay tool.
- TS608 — 7-inch Android 4.4.2 tablet, all-systems diagnostics, 17 service functions, 5,000 mAh battery. Steps up from handheld to tablet but uses older hardware.
- TS900 — 8-inch Android 11 tablet, all-systems diagnostics, 40-plus service functions, 7,700 mAh battery, 4GB RAM, 64GB storage, Tesla BLE sensor support. Current-generation hardware. Best for shops that want a single device to handle tire service, TPMS, diagnostics, and maintenance resets.
The TS900 makes the most sense for shops already running TPMS jobs and wanting to eliminate a second scan tool from the tool cart. For pure TPMS shops without a diagnostic need, the TS508WF is the more economical choice.
Technical Specifications
- Operating system: Android 11
- Processor: RK3566 Quad-core ARM Cortex-A55 at 1.8 GHz
- Memory: 4GB RAM / 64GB ROM
- Display: 8-inch LCD touchscreen, 1280x800 resolution
- Camera: 8MP rear
- Connectivity: USB Type-C, USB 2.0, Wi-Fi, Bluetooth, Mini SD card (supports up to 64GB)
- Battery: 3.7V / 7,700 mAh lithium-polymer
- Charging: 5V / 3A
- Battery life: ~7 hours continuous use
- Operating temperature: 0 to 50 degrees C / 32 to 122 degrees F
- Storage temperature: -10 to 60 degrees C / 14 to 140 degrees F
- Operating humidity: 5% to 95% non-condensing
- Dimensions: 259.87mm x 168.98mm x 33.60mm
- Weight: 998g / 2.2 lbs.
- Warranty: 1 year limited
- Software updates: 1 year included; Total Care (TCP) available separately as TS9001YRUP at $299
