Product Description

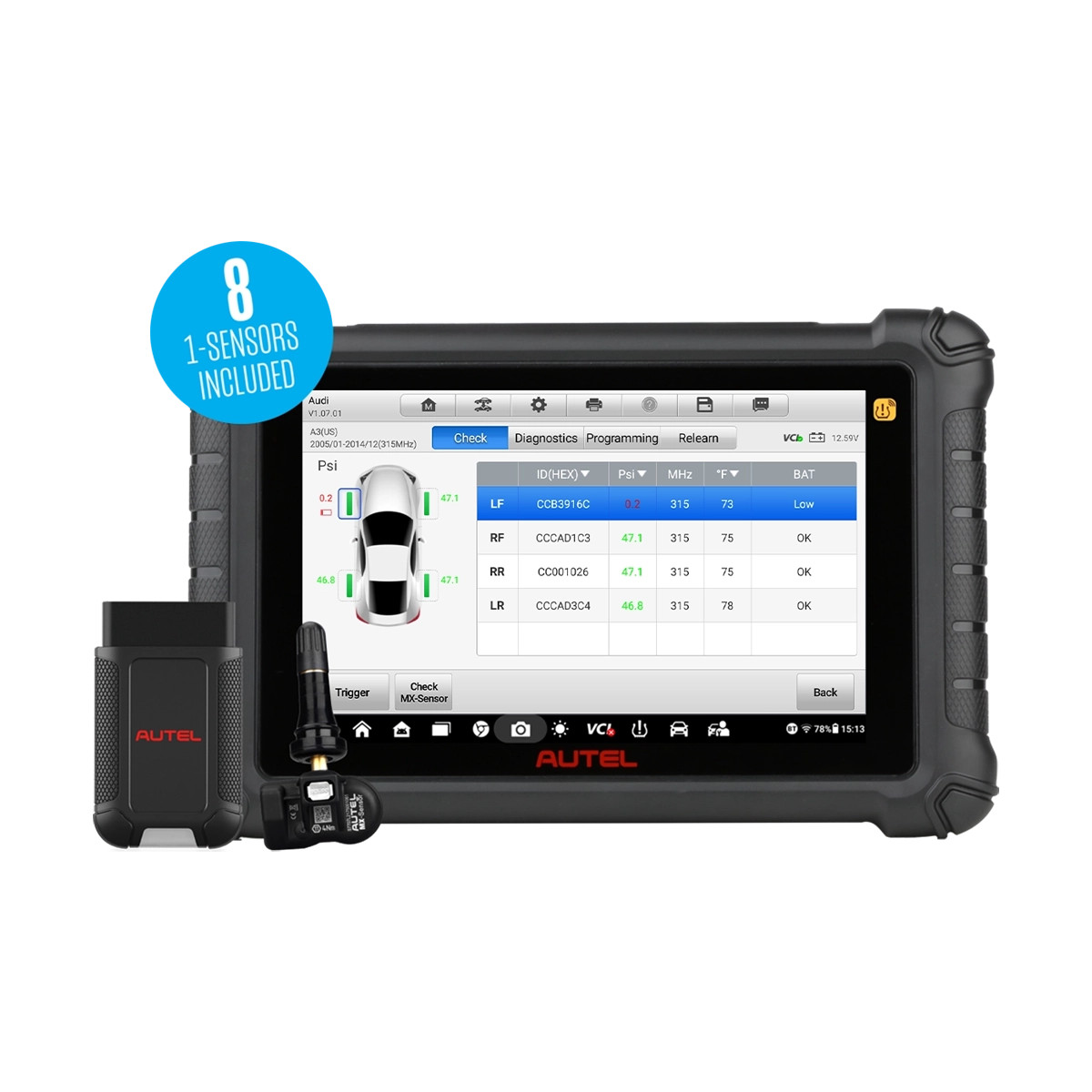

Autel MaxiTPMS TS900K-8 — TS900 Tablet Kit with 8 MX-Sensors
The TS900K-8 (part number 700300) is the top-tier Autel TPMS kit configuration — the MaxiTPMS TS900 8-inch tablet bundled with eight MX-Sensors (1-Sensors). The TS900 is not just a TPMS tool: it is a three-in-one TPMS, diagnostics, and service tablet. If your shop wants a single tool that covers TPMS sensor work and full all-systems diagnostics with bi-directional capabilities and 40+ service functions, the TS900 is the tool to look at.
TPMS Capabilities
The TS900 covers the complete TPMS service workflow at the highest level in Autel's handheld lineup:
- Activate, read, and relearn all known TPMS sensors — including Tesla OE sensors (no other Autel handheld TPMS tool covers Tesla OE sensors out of the box)
- Compatible with the Autel BLE Sensor — for Tesla vehicles and other vehicles using Bluetooth Low Energy TPMS sensors
- Program Autel 1-Sensors to replace TPMS sensors on 99% of TPMS-equipped vehicles on the road
- Enhanced TPMS Status Screen: ECU sensor ID reading, sensor/ECU ID matching verification, DTC reading/clearing
- On-screen relearn procedures with OBDII relearn support — TPMS Health Report generation
- Two 1-Sensor programming methods
- Print and share sensor data via Wi-Fi to PC
- Remote support and data logging via MaxiSYS System Suite
- Free TPMS software updates for the life of the tablet
Full Diagnostics and Service Functions
This is where the TS900 separates itself from the ITS600 and TS508WF. Beyond TPMS, the TS900 delivers:
- All-systems diagnostics across all modules — read/clear codes, view Freeze Frame and Live Data
- Bi-directional controls, Active Tests, and Special Functions — not just passive code reading; you can command actuators and run active system tests
- Pre- and Post-Scan capability — generate professional scan reports that document vehicle condition before and after repair, easy to print and share with customers
- 40+ service reset functions including: Oil/Service Light reset, Electronic Parking Brake reset, Brake Bleed, Air Bag reset, Occupancy Seat calibration, and more
- Enhanced MaxiFlash V150 VCI — supports the latest vehicle communication protocols
- Auto-VIN and Auto-Scan for quick vehicle identification
- Compatible with US, Asian, and European vehicles, 1996 and newer
Hardware Specifications
- Display: 8-inch LCD touchscreen, 1280×800 resolution
- Operating System: Android 11
- Processor: RK3566 Quad-core Arm Cortex-A55, 1.8 GHz
- Memory: 4GB RAM / 64GB ROM
- Camera: 8MP rear camera
- Battery: 3.7V / 7,700 mAh lithium-polymer — approximately 7 hours continuous use
- Connectivity: USB Type-C, USB 2.0, Wi-Fi, Bluetooth, Mini SD card (supports up to 64GB)
- Dimensions: 259.87mm × 168.98mm × 33.60mm (10.23" × 6.65" × 1.32")
- Weight: 998g (2.2 lbs)
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -10°C to 60°C (14°F to 140°F)
- Operating Humidity: 5%-95% non-condensing
Communication Protocols
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, SAE-J1850 VPW/PWM, ISO11898 (High/Middle/Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD
The Eight Included 1-Sensors
Eight Autel 1-Sensors (MX-Sensors) are included in this kit:
- Dual 315MHz and 433MHz combined frequency
- Rubber valve stems with press-release button for interchangeable aluminum stems
- 99% compatible with OEM TPMS sensors
- SAE J1205 and J1206 compliant
- 2-year limited warranty on sensors
TS900 vs. ITS600 vs. TS508WF — Where This Fits
Three honest reasons to choose the TS900K-8 over the lower-tier options:
- Tesla OE sensor coverage: Only the TS900 handles Tesla OE TPMS sensors plus BLE sensors natively. If your shop works on Tesla, this matters.
- You want to eliminate a separate scan tool: The TS900's bi-directional diagnostics with Active Tests and 40+ service functions means it can handle jobs that previously required a separate full-function scan tool. For many shops, the TS900 replaces or supplements a dedicated diagnostic platform.
- Pre/Post-Scan documentation: The TS900 produces professional scan reports. For shops doing any ADAS work or collision-adjacent services, having documentation of pre-repair and post-repair code status has real liability value.
If you only need TPMS service and your scan tool needs are handled elsewhere, the ITS600 at $515 does the TPMS job well. But if you are looking to consolidate tools or add diagnostic depth, the TS900 is a meaningful upgrade.
What Is Included
- MaxiTPMS TS900 8-inch tablet
- MaxiFlash V150 VCI
- Eight Autel 1-Sensors (MX-Sensors, rubber valve stem)
- 1-year limited warranty on tablet / 2-year on sensors
Why Buy From OEM Diagnostic Tools?
OEM Diagnostic Tools has specialized in professional automotive diagnostic equipment since 2016. We carry the full Autel TPMS lineup and can give you an honest comparison of the TS900K-8 against the ITS600 kits or standalone TS508WF for your shop's specific needs.
- Free shipping on qualifying orders
- Free tech support — call 866-217-0063
- Full manufacturer warranty honored
- Honest upgrade guidance — we will tell you if the TS900 is worth it for your shop or if a lower-cost option is sufficient
Call 866-217-0063 for quick answers and help!
