Product Description

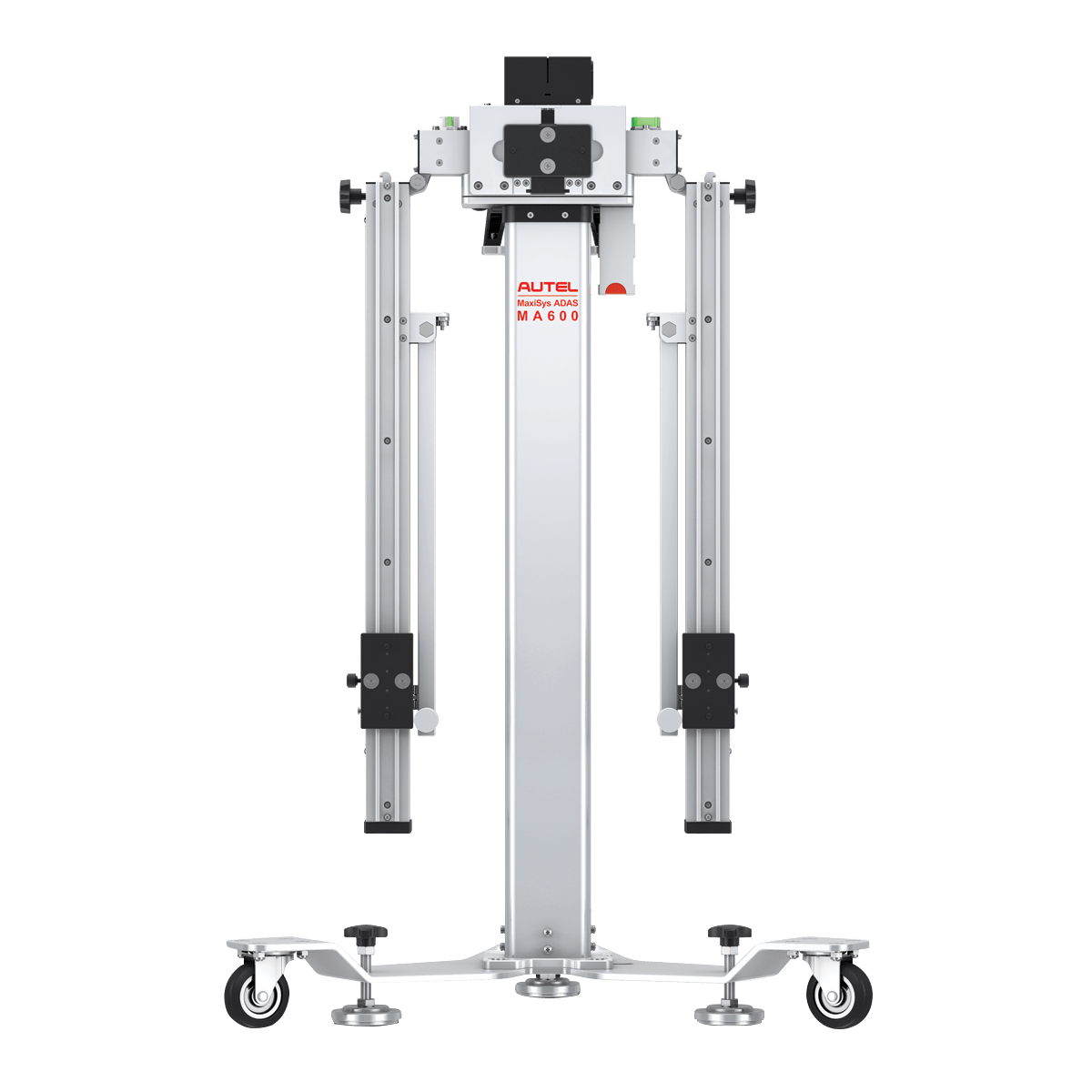

Autel MaxiSYS MA600 — Portable ADAS Calibration System
The Autel MaxiSYS MA600 is Autel's portable ADAS calibration frame system for vehicle camera calibration. This is the base frame configuration: collapsible aluminum frame, centering and alignment lasers, laser-assisted reflectors, and a Lane Departure Warning target set. The tablet is not included — you add your own compatible MaxiSYS tablet with ADAS software, or purchase one of the bundled package variants.
The MA600 was Autel's first purpose-built ADAS frame and remains the foundation of their entire portable ADAS calibration lineup. All of the LDW 2.0, LDW 3.0, All Systems 2.0, and All Systems 3.0 packages use the MA600 frame as the physical platform.
What the MA600 Covers
The base MA600 kit focuses on Lane Departure Warning camera calibration — the most commonly required ADAS calibration service following windshield replacement and front-end suspension work. The frame and laser system provide the precise positioning reference that the vehicle's forward-facing camera needs to be recalibrated to OEM specifications.
- Lane Departure Warning (LDW): Calibrates forward-facing camera systems that warn the driver when the vehicle begins to leave its lane
- Camera calibration only: The base MA600 does not cover radar-based systems (ACC, BSD) or surround-view systems (AVM) — those require expansion packs
Frame Specifications
- Frame Material: Collapsible aluminum with travel case
- Assembled Dimensions: 2,510mm W x 714mm D x 1,480-2,105mm H (98.8 x 28.1 x 58.3-82.9 in)
- Crossbar Length: 2,510mm (98.82 in)
- Crossbar Height Range: 350-950mm (13.8-37.4 in)
- Pattern Board Size: 1,360 x 960mm (53.5 x 37.8 in)
- Pattern Board Height Range: 1,000-1,600mm (39.4-62.9 in)
- Total Net Weight: 100.8 lbs (base section 53.6 lbs; column/crossbar section 47.2 lbs)
- Rated Power: 24V, 3A
- Laser Rated Power: 3V, 25mA (Class 2)
- Laser Battery: 2x AA 1.5V
- Working Temperature: 0 to 50 degrees C
- Certifications: CE, FCC, RoHS
Lasers and Targeting System
- 2-Line Centering Laser: Centers the frame to the vehicle's centerline
- 5-Line Alignment Laser: Squares the frame and verifies perpendicularity to the vehicle
- Laser-Assisted Reflectors: Used in ACC radar calibration (with expansion packs)
The laser-guided setup process provides millimeter-level accuracy for vehicle-to-frame positioning. The on-screen guided workflow in the ADAS software walks techs through the centering and squaring process step by step.
Compatible Tablets
The MA600 is compatible with the following Autel MaxiSYS tablets when the ADAS software is installed:
- MS906BT, MS906TS
- MS908, MS908P, MS908S, MS908SP
- MSELITE
- MSADAS (ADAS software pre-installed)
- MS909 series
All tablets except the MSADAS require a one-time ADAS software upgrade purchase. Tablets that previously had a different ADAS software license installed are not compatible without a clean installation — call us if you are working with a used or repurposed tablet.
The MA600 Package Ecosystem
The MA600 frame is the physical foundation for Autel's full range of portable ADAS packages. Here is how they are structured:
- MA600 (this item) — Base frame with LDW targets, no tablet
- MA60020 / LDW 2.0 — Frame + expanded LDW target set covering 10 manufacturers, no tablet
- MA60020T / LDW 2.0T — Same as MA60020 plus MS909 S2 tablet
- MAS20 / All Systems 2.0 — Frame + full target set for LDW, AVM, BSM, ACC, and more, no tablet
- MAS20T / All Systems 2.0T — Same as MAS20 plus MS909 S2 tablet
The base MA600 is the entry point. If your shop needs to cover a specific manufacturer list beyond what the base LDW targets cover, or needs ACC/AVM/BSM capability, the LDW 2.0 or All Systems packages are a better starting point than buying the base frame and adding expansion packs individually.
Expandability
The MA600 supports optional expansion packs for:
- Blind Spot Monitoring (BSM)
- Adaptive Cruise Control (ACC) — reflectors and radar calibration plates for VW, Porsche, BMW, Nissan, Infiniti, Hyundai, Kia
- Around View Monitor (AVM) — large-format surround-camera patterns
- Night Vision (NV)
- Additional LDW manufacturer-specific target sets
Minimum Space Requirements
ADAS calibration with the MA600 requires a minimum 10-foot alignment bay clearance in front of the vehicle. The calibration area must be indoors with controlled lighting conditions for accurate results.
