Product Description
Cummins Detroit Diesel DDDL Factory Toughbook is the full access set up your shop has been waiting for. This heavy truck factory diesel diagnostic tool dealer kit is the same kit that is used in all the dealerships. This Cummins and Detroit Diesel DDDL Kit will give you full diagnostic functions on all Detroit Diesel and Cummins motors including all the Cummins ISX engines.
The Cummins Insite (Lite version) and Detroit Diesel DDDL software is able to full cylinder cutout testing, bi directional controls on all the motors. Full parameter changes and full diagnostics with much more. This kit will save tons of time and money since the mechanics will have everything at their fingertips and no need to send the truck out for days and weeks of lost time and money.

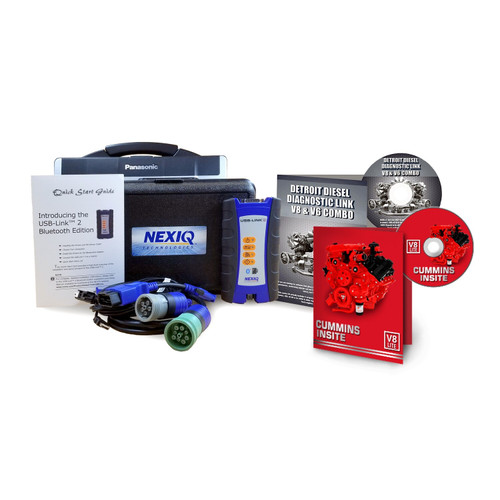

The Factory Dealer Plug and Play Package Includes.
Panasonic Heavy Duty Rugged CF-53 Toughbook Included with Solid State Hard Drive (SSD)
Cummins Insite Engine Diagnostic (Lite) software license
Detroit Diesel DDDL Dealer Software Fully Registered to Buyer and Purchase and Set Up
Nexiq 124032 Bluetooth interface including all ODB II & 9 pin connectors.
Full Factory 2 Year Warranty
__Detroit Diesel Diagnostic Link Pro (DDDL) 8.X__
Detroit Diesel Diagnostic Link 8.X otherwise known as DDDL 8.Xis the computer-based software for diagnosing Western Star 5700XE, Freightliner, Cascadia, and Detroit Powertrain vehicles systems. Diagnostic Link also supports DDEC 6 through GHG17 engine platforms. This software can display diagnostic fault codes, trouble shooting information, run services routines, and ECU information. This package contains the DDDL 8 series (2007 and newer) software and the 6.5 series (pre-2007) software. This software can perform injector cut-out tests, and change parameters,
__Usability__
- View information about the connected ECUs
- Perform standard fault code operations
- Perform traditional and advanced troubleshooting
- Read variable values in real time and display them graphically.
- Configure and manage parameters
- Perform service routines
- Play back logs of all connected activity.
__Covered Features__
- Cylinder Exhaust Temperatures
- Engine Speed
- Engine Smoke Control
- Boost Pressure
- Engine Load Percent
- Beginning of Injection
- Oil Temperature
- Fuel Temperature
- Air Inlet Temperature
- Turbo Compressor Outlet Temperature
- EGR Temperature A
- EGR Differential Pressure A
- EGR Temperature B
- EGR Differential Pressure B
- EGR DPS Counts
- EGR Mass Flow Rate
- Barometric Pressure
- Turbo Speed
- Accelerator Pedal Position
- Battery Voltage
- Active Governor
- Torque Reduction Percentage
- Vehicle Speed
- PWM 1 (% Grounded)
- PWM 2 (% Grounded)
- PWM 3 (% Grounded)
- PWM 4 (% Grounded)
__DiagnosticLink Standard vs. DiagnosticLink Pro__
DiagnosticLink 8.X Standard can do the following: provides ECU information, diagnostic fault codes, instrumentation information, service routines, the ability to run system test, and edit ECU parameters.
DiagnosticLink 8.X Professional can do all that the Standard Edition can do plus these other functions: the ability to reprogram engine controllers.
__THIS SOFTWARE IS A DIGITAL DOWNLOAD__
___Call 800-399-9495 for quick answers and help!___
Heavy Duty Truck Diagnostics Dot Com has been serving the commercial truck diagnostics industry for years. That is all we do. We have, in stock, many toughbook dealer packages, adapters, cables and peripheral to help you diagnosis the problems with your heavy duty equipment.
____Legal Stuff____
We follow strict guidelines to be in Compliance with EULA, End- User License Agreements and we Respect all EULA Agreements. All customer information and purchaser of the product is the registered end user of this product that is shipped. All trademarks are respected and owned by the respective Companies.
The USB-Link 2 is the best in available vehicle interfaces, and we ship it daily around the world. It is a rugged and dependable interface is five time faster than its predecessor with sixteen more times more random-access memory that the old USB-Link.
____Vehicle Network Protocol Support____- CAN /1939/ISO15765 - 250K, 500 k, 1M b/s with Auto Baud detection (S Channels)
- Single wire CAN (SWCAN)
- ISO 11898-3 Fault Tolerant CAN (FTCAN)
- J1708
- J1850 VPW (Class 2)
- J1850 PWM (SCP)
- ISO 9141 / KWP2000 (ISO 14230) K/L line
- ALDL 9600 and 8192 baud
- ATEC 160 Baud
____Usability____
- The USB-Link 2 use Bluetooth v. 2.1 is the fastest Bluetooth method for transferring data; it also provides single, secure pairing.
- Class 1 Bluetooth provides up 100 feet of wireless freedom.
- Flexible configuration supports wireless or wired connectivity
- Compatible with applications that diagnose ABS, instrument panels, transmissions, engines, and more.
- Great reduction in programming time with direct USB connection
- Broad protocol support
- Fast access to vehicle data for reports and maintenance
- Fast connection to diagnostic connector of vehicle
- Carrying case for fast portability and great flexibility
- Windows 10, Windows 7 compatible with either PC or Laptop
____OEM Heavy Truck Compatible with NexIQ____
- All Allison DOC Software
- Bendix ACom
- CAT Electronic Technician (ON-highway only)
- Cummins Insite
- Detroit Diesel Diagnostic Link
- Eaton ServiceRanger
- Freightliner Service Link
- Hino eXplorer
- International - ServiceMAXX Fleet Pro
- International ABS
- International DLB
- International InTune
- International IPC v2.02
- PACCAR Davie4
- VCAD Elite Mack/Volvo
- V-Mac Service Tools
- WABCO Toolbox
- NexIQ USB-Link 2
- 9 cable for vehicle connection
- OBD II (16 pin)
- 12' USB Cable
- Quick Start reference guide
____Refurbished Panasonic Toughbook____
This is the toughest laptop you will find on the planet. You can drop it on concrete, get it wet, run it over with a car, and more. It will keep on ticking. The hard drive is shock mounted to prevent failure, and the doors are all water proof. We use this model laptop because it will withstand the daily abuse that it gets in a diesel shop or in the field.
- Intel I-Series Processor
- 4 GB RAM
- CD/DVD Drive
- Wireless Internet
- 12-month warranty given on all hardware
