Product Description

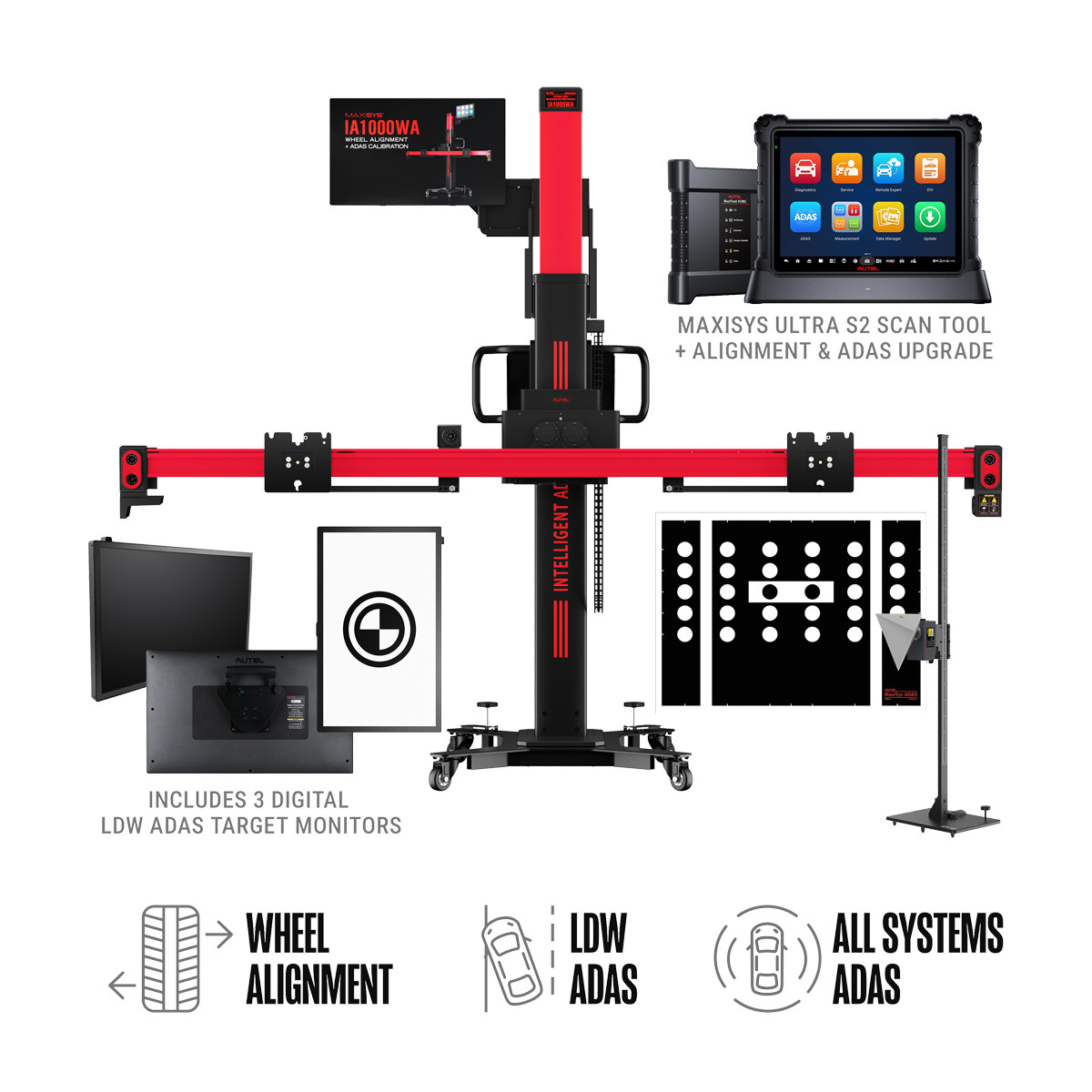

Autel MaxiSYS IA1000ASTDT — All-Systems ADAS Calibration with Digital Targets
The IA1000ASTDT is the most complete IA1000 package — it includes the IA1000 calibration frame, the MaxiSYS Ultra S2 tablet, all-systems ADAS calibration targets and equipment, LDW targets, and three digital target monitors. This is the configuration for a shop that wants maximum ADAS calibration capability with the speed advantage of digital targets and zero compromises on system coverage.
What's Included
- IA1000 Calibration Frame (model AUTEL-CSC1000) with robotic crossbar and 6 HD cameras
- MaxiSYS Ultra S2 Tablet — Autel's flagship diagnostic tablet
- IA1000 Activation Card
- LDW (Lane Departure Warning) Targets — physical targets for LDW-specific calibrations
- All Systems Calibration Equipment — covers camera, radar, lidar, and night vision ADAS systems
- Digital Targets — 3 Monitors — auto-projects correct calibration pattern, eliminates manual target selection
- Digital Target Activation Card
IA1000 Platform — Key Capabilities
Automated ADAS Targeting and Advanced Wheel Alignment
- 6 high-definition cameras (3072 x 2048 pixels each) combined with precision-engineered wheel clamp targets deliver 0.02° accuracy — the tightest tolerance in this class
- 5-way robotic, automated forward-facing target placement — the crossbar moves itself to the correct position, reducing setup time versus manually adjusting a static frame
- Laser-guided Blind Spot, ACC, and AVM pattern positioning for accurate radar and camera calibration placement
- Advanced wheel alignment data beyond standard camber, caster, and toe — provides full OEM-spec alignment measurement before proceeding to ADAS calibration
Target Validation and OEM-Compliant Reporting
- Digital Go-No-Go confirmation — the system will not let you advance if target placement is out of spec. This is not advisory; it is a hard stop that prevents calibrations on incorrectly positioned setups
- Validated target position data is documented in Pre/Post Scan reports — provides insurance-ready documentation showing calibration was performed to OEM specifications
- OEM-sourced calibration procedures throughout — not generic aftermarket procedures
Diagnostics Integration
- Powered by the MaxiSYS Ultra S2 diagnostic tablet with Topology 3.0 — gives you full system scan capability (read/erase codes across all modules, live data, bi-directional tests) as part of the same workflow
- Industry-leading coverage for U.S., Asian, and European vehicles
- OTA (over-the-air) software updates for continuous access to the latest OEM-sourced calibration and diagnostic coverage
Frame Design
- Robotic crossbar automatically sets vertical calibration position
- Automated unlevel floor compensation — calibrations can be performed on non-perfectly-level surfaces without failed results
- Frame folded dimensions: 800 x 1000 x 1900 mm — manageable for shop storage
- Power: 360W, 100–264V input — standard shop power
Digital Targets — Why They Matter at This Level
The "DT" designation means this package includes three digital display monitors that project calibration patterns rather than requiring physical foam board targets to be located, transported, and positioned by hand. At the all-systems level — where you are calibrating cameras, radar, lidar, and AVM systems — having the correct pattern auto-projected for each specific calibration step is a meaningful time saver. Physical targets also degrade over time and can be damaged; digital patterns remain perfect. Self-adjusting brightness handles variable shop lighting automatically.
Understanding the IA1000 Package Lineup
All IA1000 packages share the same AUTEL-CSC1000 calibration frame and the same core hardware. The differences are in what's included in the box and what calibration coverage is activated. Here is the full package lineup for reference:
- IA1000 — Frame only, no tablet, no calibration targets (alignment pre-check baseline)

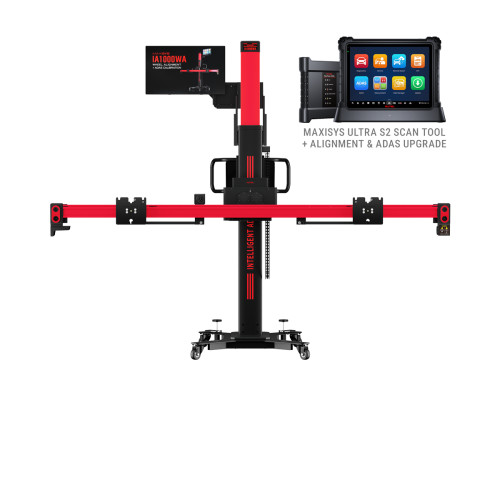

- IA1000T — Frame + Digital Targets (3 monitors), requires Ultra S2 tablet separately
- IA1000TDT — Frame + Ultra S2 Tablet + Digital Targets (3 monitors)

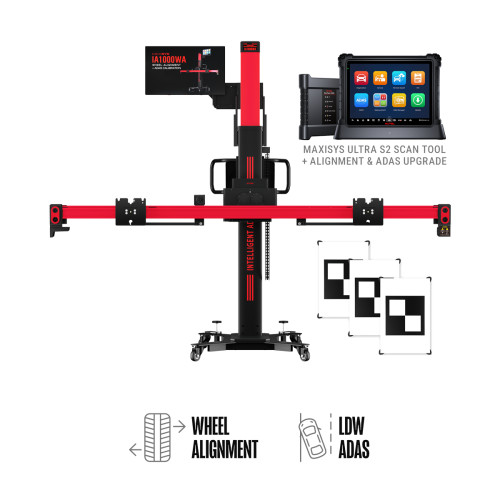

- IA1000LDWT — Frame + Ultra S2 Tablet + LDW Targets (lane departure warning cameras)

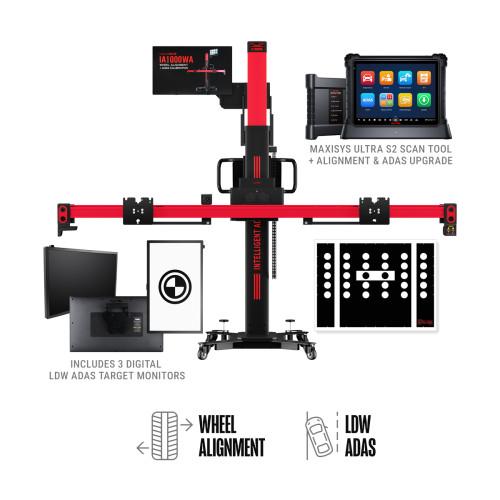

- IA1000LDWTDT — Frame + Ultra S2 Tablet + LDW Targets + Digital Targets (3 monitors)
- IA1000AST — Frame + Ultra S2 Tablet + LDW Targets + All Systems Calibration Equipment
- IA1000ASTDT — Frame + Ultra S2 Tablet + LDW Targets + All Systems Equipment + Digital Targets (3 monitors)
Choose based on what systems you need to calibrate and whether you already own a compatible MaxiSYS Ultra tablet.
Technical Specifications
| Spec | Value |
|---|---|
| Model | AUTEL-CSC1000 |
| Rated Power | 360 W |
| Power Supply | 100–264 V, 50/60 Hz |
| Calibration Frame Folded Dimensions | 800 x 1000 x 1900 mm (31.50 x 39.37 x 74.80 in) |
| Crossbar Unfolded Length | 2700 mm (106.30 in) |
| Crossbar Folded Length | 400 mm (15.75 in) |
| Calibration Frame Height Range | 1670–2770 mm (65.75–109.06 in) |
| Crossbar Height Range | 300–2500 mm (11.18–98.43 in) |
| Camera Count | 6 |
| Camera Resolution | 3072 x 2048 pixels per camera |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Compatible Tablet | MaxiSYS Ultra Tablet Series |
