Autel MaxiSYS IA1000DT — Automated ADAS Calibration Frame with Digital Targets
The IA1000DT is the IA1000 calibration frame paired with digital LDW targets — three digital display monitors that auto-project calibration patterns. This package requires you to supply your own MaxiSYS Ultra tablet and IA1000 Activation Card separately. It is the right configuration for a shop that already owns a compatible Autel MaxiSYS Ultra tablet and wants the digital target capability without paying for another tablet bundled into the package.
What's Included
- IA1000 Calibration Frame (model AUTEL-CSC1000) with robotic crossbar and 6 HD cameras

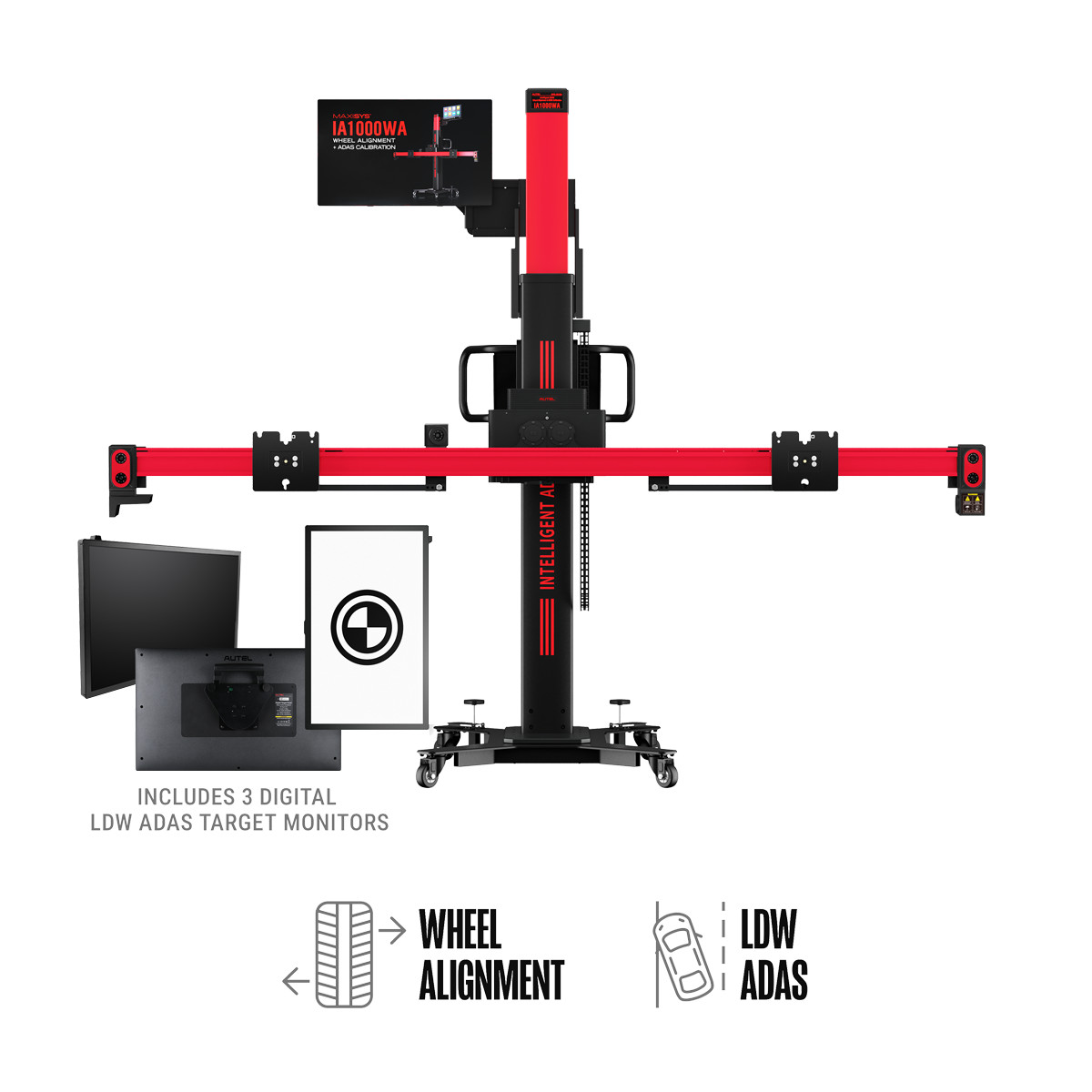

- Digital Targets — 3 Monitors — auto-projects calibration patterns, no manual target selection
- Digital Target Activation Card
What You Need to Supply
- MaxiSYS Ultra Tablet (Ultra S2 or compatible Ultra series) — sold separately
- IA1000 Activation Card — required to activate ADAS calibration software on your tablet
If you do not already own a compatible MaxiSYS Ultra tablet, consider the IA1000TDT package which includes the Ultra S2 tablet, or the IA1000ASTDT for full all-systems coverage.
IA1000 Platform — Key Capabilities
Automated ADAS Targeting and Advanced Wheel Alignment
- 6 high-definition cameras (3072 x 2048 pixels each) combined with precision-engineered wheel clamp targets deliver 0.02° accuracy — the tightest tolerance in this class
- 5-way robotic, automated forward-facing target placement — the crossbar moves itself to the correct position, reducing setup time versus manually adjusting a static frame
- Laser-guided Blind Spot, ACC, and AVM pattern positioning for accurate radar and camera calibration placement
- Advanced wheel alignment data beyond standard camber, caster, and toe — provides full OEM-spec alignment measurement before proceeding to ADAS calibration
Target Validation and OEM-Compliant Reporting
- Digital Go-No-Go confirmation — the system will not let you advance if target placement is out of spec. This is not advisory; it is a hard stop that prevents calibrations on incorrectly positioned setups
- Validated target position data is documented in Pre/Post Scan reports — provides insurance-ready documentation showing calibration was performed to OEM specifications
- OEM-sourced calibration procedures throughout — not generic aftermarket procedures
Diagnostics Integration
- Powered by the MaxiSYS Ultra S2 diagnostic tablet with Topology 3.0 — gives you full system scan capability (read/erase codes across all modules, live data, bi-directional tests) as part of the same workflow
- Industry-leading coverage for U.S., Asian, and European vehicles
- OTA (over-the-air) software updates for continuous access to the latest OEM-sourced calibration and diagnostic coverage
Frame Design
- Robotic crossbar automatically sets vertical calibration position
- Automated unlevel floor compensation — calibrations can be performed on non-perfectly-level surfaces without failed results
- Frame folded dimensions: 800 x 1000 x 1900 mm — manageable for shop storage
- Power: 360W, 100–264V input — standard shop power
Digital Targets
The three included digital monitors auto-project the correct calibration pattern for each ADAS calibration step. This eliminates manual pattern selection, physical target storage, and wear on physical targets over time. OTA updates push new OEM-sourced target coverage automatically.
Understanding the IA1000 Package Lineup
All IA1000 packages share the same AUTEL-CSC1000 calibration frame and the same core hardware. The differences are in what's included in the box and what calibration coverage is activated. Here is the full package lineup for reference:
- IA1000 — Frame only, no tablet, no calibration targets (alignment pre-check baseline)
- IA1000T — Frame + Digital Targets (3 monitors), requires Ultra S2 tablet separately
- IA1000TDT — Frame + Ultra S2 Tablet + Digital Targets (3 monitors)
- IA1000LDWT — Frame + Ultra S2 Tablet + LDW Targets (lane departure warning cameras)
- IA1000LDWTDT — Frame + Ultra S2 Tablet + LDW Targets + Digital Targets (3 monitors)
- IA1000AST — Frame + Ultra S2 Tablet + LDW Targets + All Systems Calibration Equipment
- IA1000ASTDT — Frame + Ultra S2 Tablet + LDW Targets + All Systems Equipment + Digital Targets (3 monitors)
Choose based on what systems you need to calibrate and whether you already own a compatible MaxiSYS Ultra tablet.
Technical Specifications
| Spec | Value |
|---|---|
| Model | AUTEL-CSC1000 |
| Rated Power | 360 W |
| Power Supply | 100–264 V, 50/60 Hz |
| Calibration Frame Folded Dimensions | 800 x 1000 x 1900 mm (31.50 x 39.37 x 74.80 in) |
| Crossbar Unfolded Length | 2700 mm (106.30 in) |
| Crossbar Folded Length | 400 mm (15.75 in) |
| Calibration Frame Height Range | 1670–2770 mm (65.75–109.06 in) |
| Crossbar Height Range | 300–2500 mm (11.18–98.43 in) |
| Camera Count | 6 |
| Camera Resolution | 3072 x 2048 pixels per camera |
| Operating Temperature | -10 to 50°C (14 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Compatible Tablet | MaxiSYS Ultra Tablet Series |
