Product Description

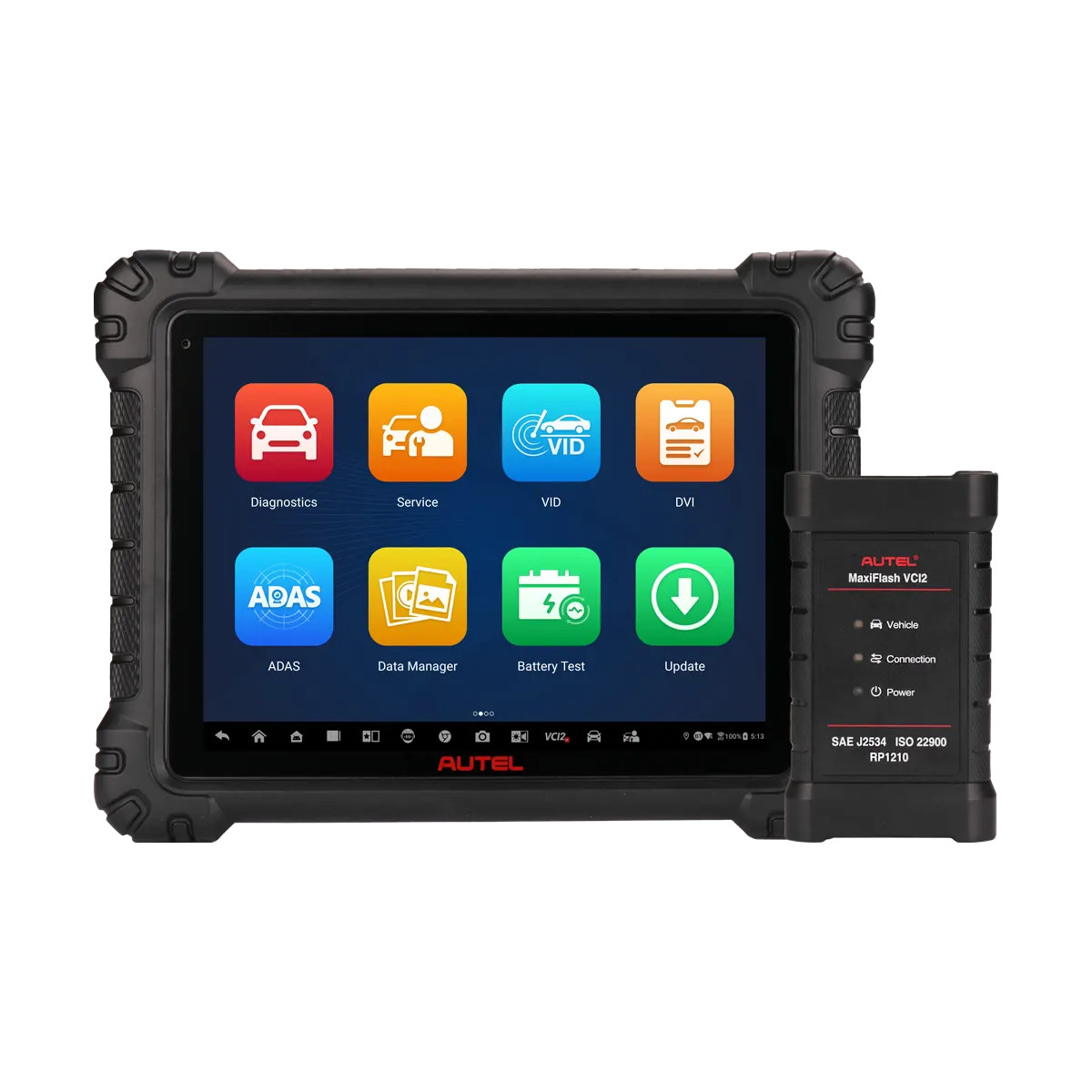

Autel MS909 S2 with ADAS Calibration Software
The MS909 S2 with ADAS Calibration Software (SKU: MS909S2ADAS) is the next-generation MS909 S2 diagnostic tablet with ADAS calibration software pre-activated. This configuration gives collision shops and general repair shops a single platform for full-system diagnostics, pre/post-scan reporting, and guided ADAS recalibration — on one tablet running Android 13 with a 2.7 GHz 8-core processor and the upgraded MaxiFLASH VCI2.
Important: The ADAS software activation enables the calibration procedures on the tablet. Physical ADAS calibrations still require a compatible target frame system (Autel IA700, IA900, IA900WA, or MA600). The frame and target kits are sold separately or available in bundled packages — contact us for options.
Who Needs This Configuration
The MS909S2ADAS is the right choice when:
- You own or are purchasing an Autel ADAS frame separately and need the tablet with calibration software ready to go
- You are a collision shop that needs one tablet for pre/post-scan documentation AND ADAS recalibration
- You are upgrading from an older Autel tablet and want the latest MS909 generation with ADAS capability
- You want the MS909 S2 diagnostic platform but need ADAS software included in the purchase
If you want everything — frame, targets, and tablet — in one bundle, ask us about complete ADAS system packages.
Full Diagnostic Capabilities (MS909 S2 Platform)
- Full OE-level system access — all modules, all systems on 1996 and newer U.S., Asian, and European vehicles
- Bi-directional control — actuator tests, component activation
- Coding and adaptations — module programming, variant coding, OE-level adaptation functions
- 45+ service reset functions — oil, EPB, SAS, BMS, DPF, IMMO, TPMS, and more
- All 10 OBDII test modes — live data, freeze frame, Mode 6
- Pre- and post-scan reporting — documented scan reports for insurance and customer records
- Topology 3.0 dynamic network analysis — monitor individual module communications across multiple networks
- Enhanced Live Data — Live Data Fusion, Reference Sampling, Parameter Graphing
- Security gateway access — Mercedes-Benz, Nissan, VW/Audi, Stellantis authorized (AutoAuth account required)
- Remote Expert ready — connect with remote programming experts
- MAX digital inspection app and hands-free navigation assistant built in
- MOTOR TruSpeed — one year of free integrated repair data access
ADAS Calibration Capability
With calibration software activated, the MS909S2ADAS supports guided ADAS recalibration for:
- Forward camera systems (LDW, FCW, AEB)
- Radar-based ACC systems
- Blind spot monitoring
- Rear camera systems
- 360-degree surround view systems (where applicable)
Compatible with Autel IA700, IA900, IA900WA, and MA600 frame systems.
Hardware Specifications
- OS: Android 13
- Processor: Octa-core, 2.7 GHz
- Memory: 12GB RAM / 256GB storage
- Display: 11" anti-glare, 2176 x 1600
- Battery: 15,000mAh, USB-C 45W PD fast charging supported
- Weight: 1,656.5 g (3.65 lbs)
- Dimensions: 315.4 x 240.3 x 39.0 mm
- Connectivity: Wi-Fi 6.0 dual band, Bluetooth 5.2, GPS, 2x USB-A, USB-C, HDMI 2.0
- VCI: MaxiFLASH VCI2 with J2534 and CAN FD
Why Buy From OEM Diagnostic Tools?
Since 2016 we have helped shops choose the right Autel configuration for their workflow. Call 866-217-0063 and we will confirm whether this tablet-only ADAS configuration fits your situation, or whether a bundled system makes more sense. Free shipping, full warranty, and no-pressure guidance on every order.
Call 866-217-0063 for quick answers and help!
