Product Description

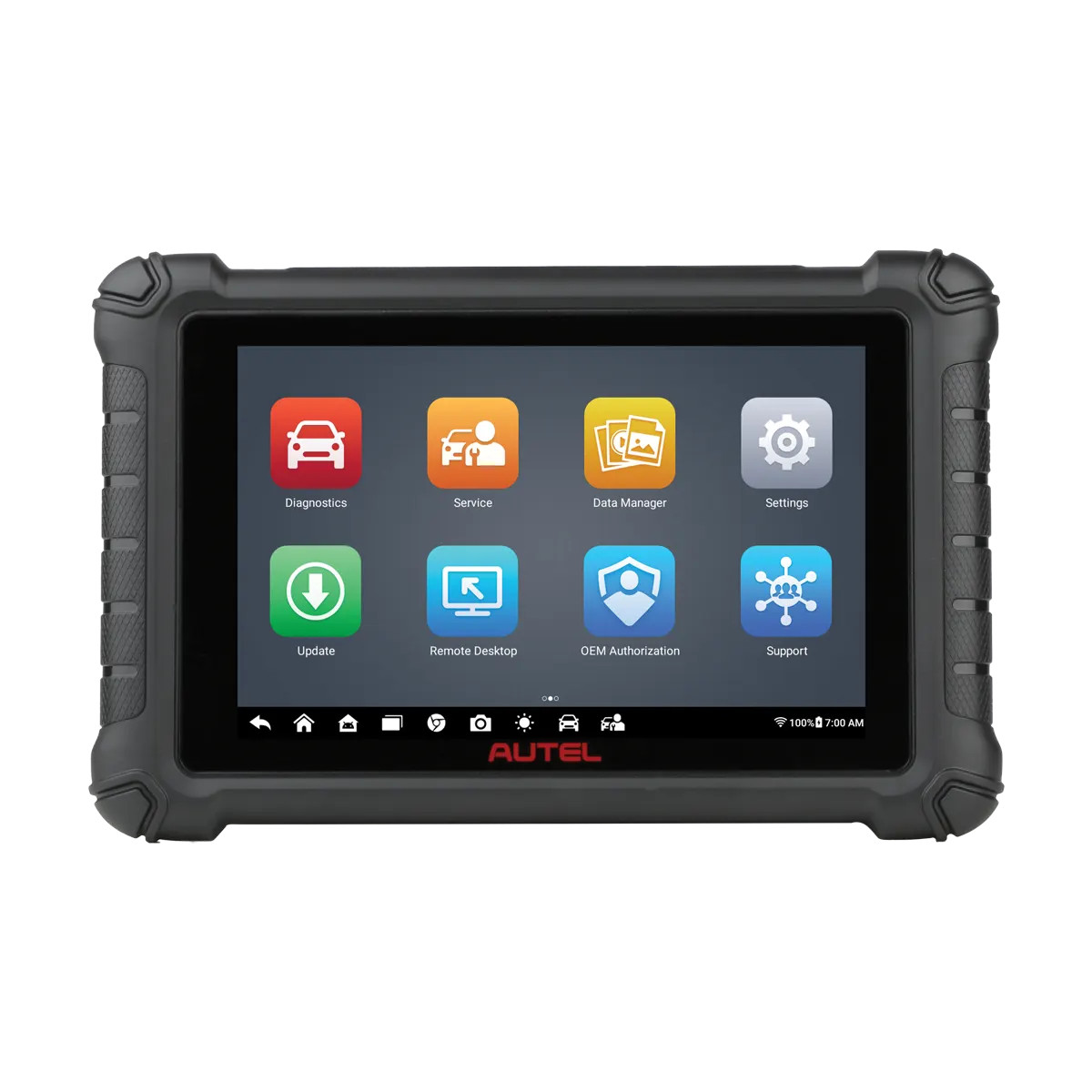

Autel MaxiCheck MX900 All-Systems Scanner and Service Tablet
The Autel MaxiCheck MX900 is an 8-inch Android touchscreen diagnostic tablet that delivers full all-systems scanning plus an extensive service menu. For a shop looking to move beyond basic code reading into complete vehicle servicing — brake bleeding, battery registration, DPF regen, steering angle resets — the MX900 covers it all in a single corded unit. It runs Android 11 on a quad-core 1.8 GHz processor with 64GB of storage and gives you roughly 7 hours of battery life per charge.
Who This Is For
The MX900 targets independent repair shops and collision centers that need comprehensive all-systems diagnostics and service functions without stepping into the $4,000+ MaxiSYS range. It handles the full diagnostic and service workflow for most shops: read codes, look at live data, run active tests, perform service resets — all from one screen. It is a corded tablet, meaning it uses a cable connection to the vehicle rather than a standalone Bluetooth VCI, which is a reliable choice for shops that want direct connection simplicity.
The MX900 is categorized as a collision diagnostic tool, making it a practical choice for body shops and ADAS collision centers that need thorough pre- and post-scan capabilities combined with service menu access.
Diagnostic Functions
- Full all-systems coverage: Compatible with US, Asian, and European vehicles 1996 and newer
- Read and erase codes across all available vehicle systems
- Live Data with graphing: View and graph real-time PIDs from any system
- Freeze Frame data for fault condition analysis
- Bi-directional Active Tests: Command components on and off to verify operation
- Special Functions: System-specific functions beyond basic code reading
Service Menu — 40-Plus Functions
The MX900 ships with a full-featured service menu covering the most common maintenance and calibration tasks in today's repair shops:
- Brake Bleed
- Oil and Service Light Reset
- Battery Registration (BMS)
- DPF Regeneration and Reset
- Electronic Parking Brake Service and Reset
- Steering Angle Sensor Reset
- Plus 35+ additional service functions covering TPMS, throttle body, injector coding, suspension calibration, and more
Software and Updates
- Comes with one year of free software updates — download wirelessly via Wi-Fi
- Subsequent updates available for purchase through the tool and linked Autel account
- Annual Total Care Package (SKU: MX9001YRUP) available for continued updates: $169.00/year
Hardware Specifications
- Display: 8-inch LCD touchscreen, 1280x800 resolution
- OS: Android 11
- Processor: Quad-core, 1.8 GHz
- Memory: 64 GB storage
- Battery: 3.7V, 7700 mAh lithium-polymer — approximately 7 hours continuous use
- Charging: 5V/3A input
- Connectivity: Type-C USB, USB 2.0, Wi-Fi, Micro SD card slot (up to 64GB)
- Weight: 925g
- Dimensions: 168.9mm x 259.8mm x 33.6mm
- Sensor: Ambient Light Sensor
Communication Protocols Supported
The MX900 supports the full range of modern OBD communication protocols:
- ISO9141-2, ISO14230-2, ISO15765
- K/L-Line, Flashing Code
- SAE-J1850 VPW, SAE-J1850 PWM
- ISO11898: High-speed, Middle-speed, Low-speed, Single-wire CAN, fault-tolerant CAN
- SAE J2610, GM UART, UART Echo Byte Protocol
- Honda Diag-H Protocol, TP2.0, TP1.6
- ISO13400, CAN FD
Environmental Ratings
- Operating temperature: 0 to 50C
- Storage temperature: -10 to 60C
- Operating humidity: 5% to 95% non-condensing
What Is Included
- MaxiCheck MX900 tablet
- OBD connection cable
- One year of free software updates
- One-year limited warranty
MX900 vs Stepping Up to MaxiSYS
The MX900 handles everything a high-volume general repair shop needs for code work, live data, bi-directional tests, and service resets. If your shop also needs advanced functions like ECU coding and programming, network topology mapping, or ADAS calibration integration, those capabilities live in the MaxiSYS MS909, MS919, or Ultra families. For shops whose workflow is diagnosis + service resets, the MX900 at its price point is the right buy. Call 866-217-0063 and we will walk through where the MX900 ends and the MaxiSYS begins for your specific use cases.
